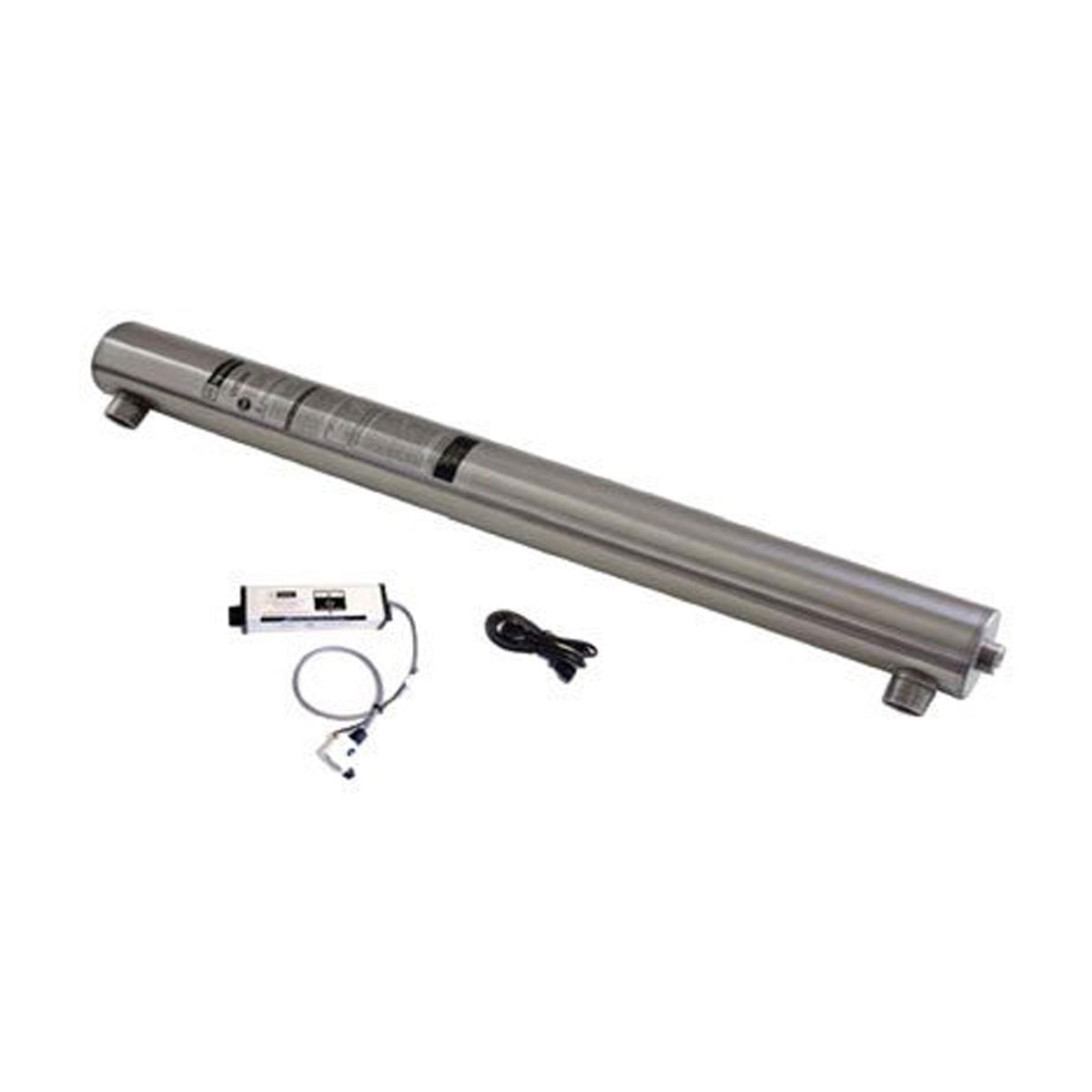

UV Dynamics 40 GPM UVD1200 1" MIPT

SKU: UVD-1200
(0) No Reviews yet
$1,093.99

In Stock

UV Dynamics 40 GPM UVD1200 1" MIPT

The UV Dynamics model UVD1200 is applicable for general disinfection in smaller commercial / industrial applications. Ultraviolet (UV) water disinfection protects against waterborne micro-organisms and is effective against Giardia and Cryptosporidium without the use of chemicals.

The UV Dynamics model UVD1200 was designed using sophisticated computer modeling software and then verified by independent third party testing using accepted biodosimetry methods by GAP EnviroMicrobial Services.

The microprocessor controlled UV power source is designed for long life and includes both visual and audio lamp failure alarms as well as an annual lamp change timer. Included is an isolated low voltage solenoid drive output. Our optional solenoid valves simply plug into the unit and require no additional interface cables or transformers to complete the solenoid safety shut off feature.

Recommended:

  • UVD/P400467 - Surge Protector. A Surge Protector helps protect your UV power supply from frequent power outages, surges, brown out conditions or electrical storm activity. Recommended for use with all UV Dynamics installations.

An Eco Fee has been applied to this product. For more info, visit the Light Recycle info page

PRODUCT FEATURES
  • Flow rate of 40gpm (150L/min) delivers UV dose of 30mj/cm2 /li>
  • Flow rate of 30gpm (112L/min) delivers UV dose of 40mj/cm2
  • Passivated and polished 304 stainless steel reactor measuring 3.5" x 50.5"
  • 9000hr long life coated UV lamp
  • Microprocessor controlled UV power source with audible and visible lamp failure alarms
  • True Lamp Current closed loop current control
  • Annual lamp change reminder timer
  • Lamp life remaining feature
  • 1" MNPT fittings
  • No tools required for regular servicing
  • Easy-service lamp connector
  • Optional solenoid valve
  • Optional UV monitor system
APPLICATION GUIDELINES
  • A Minimum 5 micron pre-filter required.
  • Indoor use only - Select a mounting location for UV power source to protect it from condensation from the disinfection chamber and system piping.
  • Clean the quartz sleeve regularly
Water must meet the following minimum requirements for trouble free operation
  • Turbidity:< 1 NTU
  • Suspended Solids:< 10mg/L
  • Colour: None
  • Total Iron:< 0.3 mg/L
  • Manganese:< 0.05 mg/L
  • Hardness:< 7 gpg
  • UVT%: > 80%

UV Dynamics UVD-1200 Parts

Diag. No.Item No.Description
UVD-RL400271
UV Dynamics UV Lamp (UVD 1200, NSF 20.40C)
UVD-QS400275
UV Dynamics Quartz Sleeve (UVD1200, NSF 20.40C)
UVD-P400357
UV Dynamics Ballast (UVD 1200, 1500) MF-LLG120/S-NC
UVD-P400111
UV Dynamics Lamp Spring (All Units)
