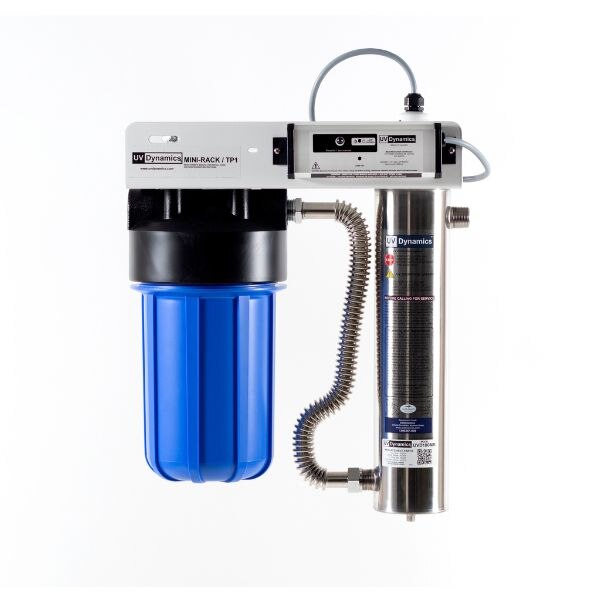

UV Dynamics 6 GPM MR180TP1-100 w/ 1 x 10" Big Blue Filter Housing
SKU: UVD-MR180TP1100
UV Dynamics 6 GPM MR180TP1-100 w/ 1 x 10" Big Blue Filter Housing
UV Dynamics Mini-Rack Systems combine up to three Big Blue style filter housings and a UV disinfection system into one simple, clean looking, and integrated product line. Manufactured from rugged 10 gauge HR commercial grade steel and finished in a tough powder coat finish, the system will stay looking good as new for many years.
The Mini-Rack system uses a special variation of our standard disinfection chamber and is equipped with a bottom mounted 1/4" drain plug to facilitate winterization in seasonal applications.
UV Dynamics Mini-Rack systems are quick to install, are easy to service and provide lasting value.
Recommended:
- UVD/P400467 - Surge Protector. A Surge Protector helps protect your UV power supply from frequent power outages, surges, brown out conditions or electrical storm activity. Recommended for use with all UV Dynamics installations.
- VA/D6 - 6 GPM Flow Control. Flow controls are used to maintain a defined flow rate regardless of pressure variations of the supply line.
An Eco Fee has been applied to this product. For more info, visit the Light Recycle info page.
The UV Dynamics General Purpose UV Water Sanitizer & UV Water Purifiers Features Include:
Water Purification 6 gallons per minute [GPM] = 360 gallons per hour [GPH] Potable & high purity water point of use applications Passivated and polished 304 Stainless Steel reactor chambers manufactured from A249 pressure rated tube Advanced UV Detection System designed to minimize nuisance alarms Nominal 6 GPM flow rates at 30mJ dose 3/4" porting Audio / visual lamp timer included on UV system Stainless Steel interconnect plumbing UV bulb life of approximately 9,000 hours (approx. 375 days) Annual UV lamp replacement reminder feature Domed quartz sleeve to simplify servicing No tools required for regular servicing Easy-service lamp connector
Includes:
180 (6 GPM) standard series UV 1 - 10" big blue filters (cartridge not included) Mini rack - manufactured from rugged 10 gauge HR commercial grade steel and is finished in a tough power coat finish Connection 3/4" FIPT x 3/4" MIPT Comes fully assembled.
Includes:
APPLICATION GUIDELINES
A Minimum 5 micron pre-filter required. Indoor use only - Select a mounting location for UV power source to protect it from condensation from the disinfection chamber and system piping. Clean the quartz sleeve regularly
Water must meet the following minimum requirements for trouble free operation
Turbidity:< 1 NTU Suspended Solids:< 10mg/L Colour: None Total Iron:< 0.3 mg/L Manganese:< 0.05 mg/L Hardness:< 7 gpg UVT%: > 80%
Water must meet the following minimum requirements for trouble free operation
UV Dynamics MR180TPL-S10 Parts
| Diag. No. | Item No. | Description |
|---|---|---|
| LIQ-BB510 | Spun Polypropylene Sediment Cartridge 10" x 4 1/2" x 5 Micron | |
| UVD-RL400434 | UV Dynamics UV Lamp (UVD 180, 245) | |
| UVD-QS400435 | UV Dynamics Quartz Sleeve (UVD 180, 245) | |
| UVD-P400235 | UV Dynamics Ballast (UVD 180, 245, 320E) MF-SLE120 | |
| UVD-P400202 | UV Dynamics O-Ring Set A (180, 240, 320, 320E, 400, 400E, 8.40C) | |
| UVD-P400111 | UV Dynamics Lamp Spring (All Units) | |
| Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times. | ||
