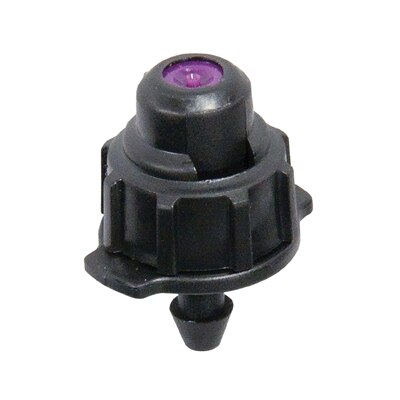

DIG Low Flow Mister/Fogger Assembly w/Barb (.8 GPM, Purple)

SKU: MI-MISTERP
(0) No Reviews yet
$1.55

In Stock

DIG Low Flow Mister/Fogger Assembly w/Barb (.8 GPM, Purple)

DIG?s low flow, 360-degree Fogger/Misters are ideal for misting, humidifying, and cooling applications in residential gardens and greenhouses. The fogger/mister?s vortex design spins the water droplets into a fine mist, producing micro-sized droplets in a small diameter area. The low flow fogger/misters have a 1/4" barbed connection, in full circle, small diameter pattern only, and operate at a pressure range of 30 to 60 PSI. The fogger/misters can be placed near pools and patio areas or in greenhouses to reduce temperature by their humidifying effect, or used where overhead watering is suggested on any type of planting, including vegetation that requires constant moisture.

Features

  • Incorporates a vortex mechanism, breaking the water into micro-sized droplets
  • Can be used for overhead cooling and humidifying, indoors or outdoors
  • Can be extended with 1/4" micro tubing in upright or upside down position
  • Efficient method to apply water with a very fine mist application
  • Trouble free operation with no moving parts
  • Low flow with small droplets in a fine mist with 360-degree pattern in approximately 70ø trajectory
  • Easy to open, clean and replace
  • Three part construction with O-ring for a tight seal
  • Comes with 1/4" barbed base
  • Constructed of UV-resistant, durable plastic material

Product specifications

  • Operating pressure range: 30 to 60 PSI
  • Flow rate: .85 GPH @ 50 PSI
  • Pattern: 360ø
  • Trajectory angle: approximately 70ø
  • Connection: 1/4" barb
  • Average droplet size: 50 micron
  • Filter requirement: minimum of 150 mesh
  • Recommended spacing: 2' to 3' apart
  • Material:
    • Body, cover and nozzle: high impact plastic
    • O-ring: Buna-N
Pressure (PSI)Flow rate (GPH)Diameter (360ø)
30
.71
2.2'
35
.76
2.3'
40
.80
2.4'
45
.84
2.5'
50
.85
2.5'
55
.87
2.6'
60
.90
2.6'
