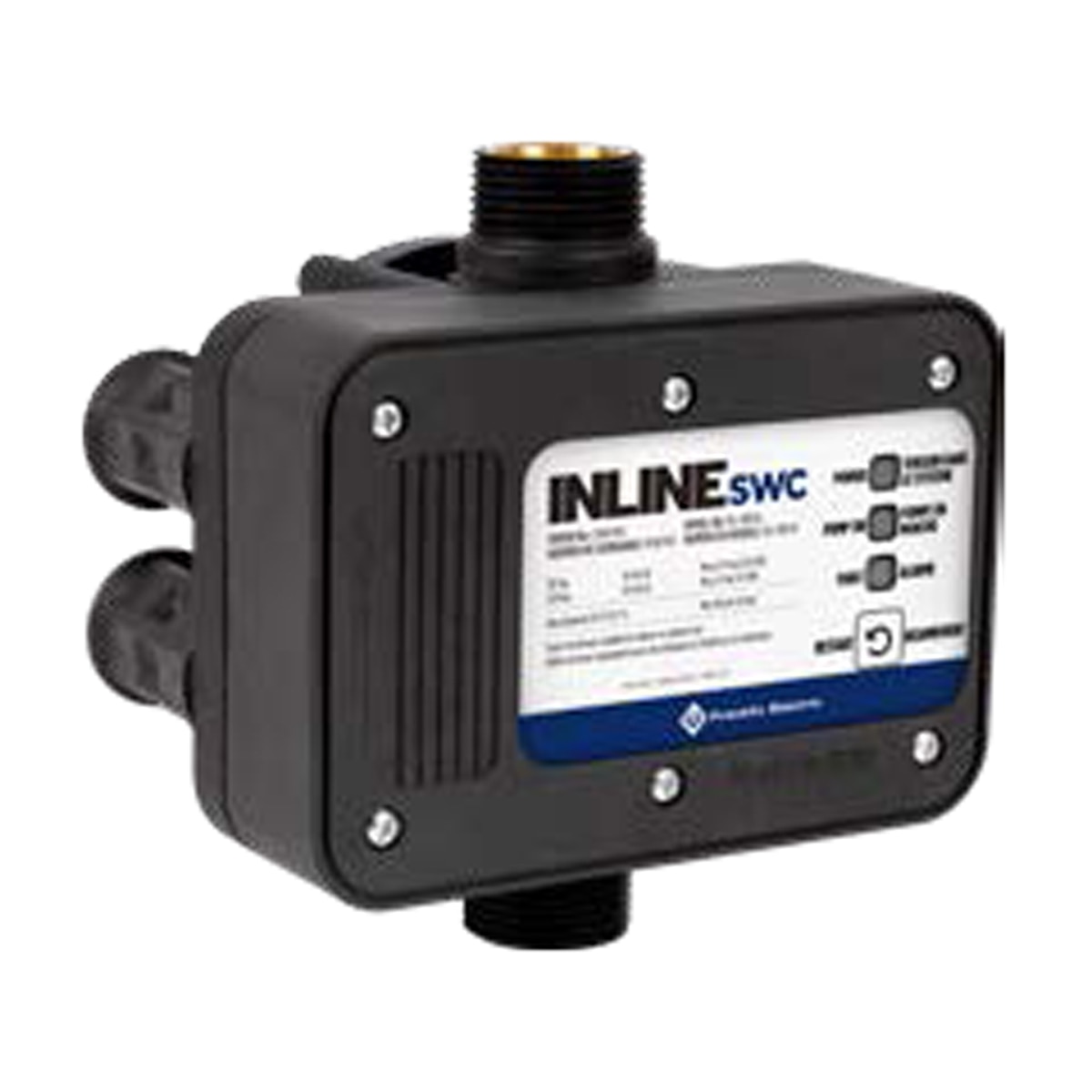

INLINE SWC SERIES 115V 230V 1/2HP-2HP 1"MNPT

SKU: FRA-91987103
(0) No Reviews yet
$215.00

In Stock

Franklin 2HP Max, 115/230v, 16 amp Max, Inline Jet Pump Control (1"MNPT)

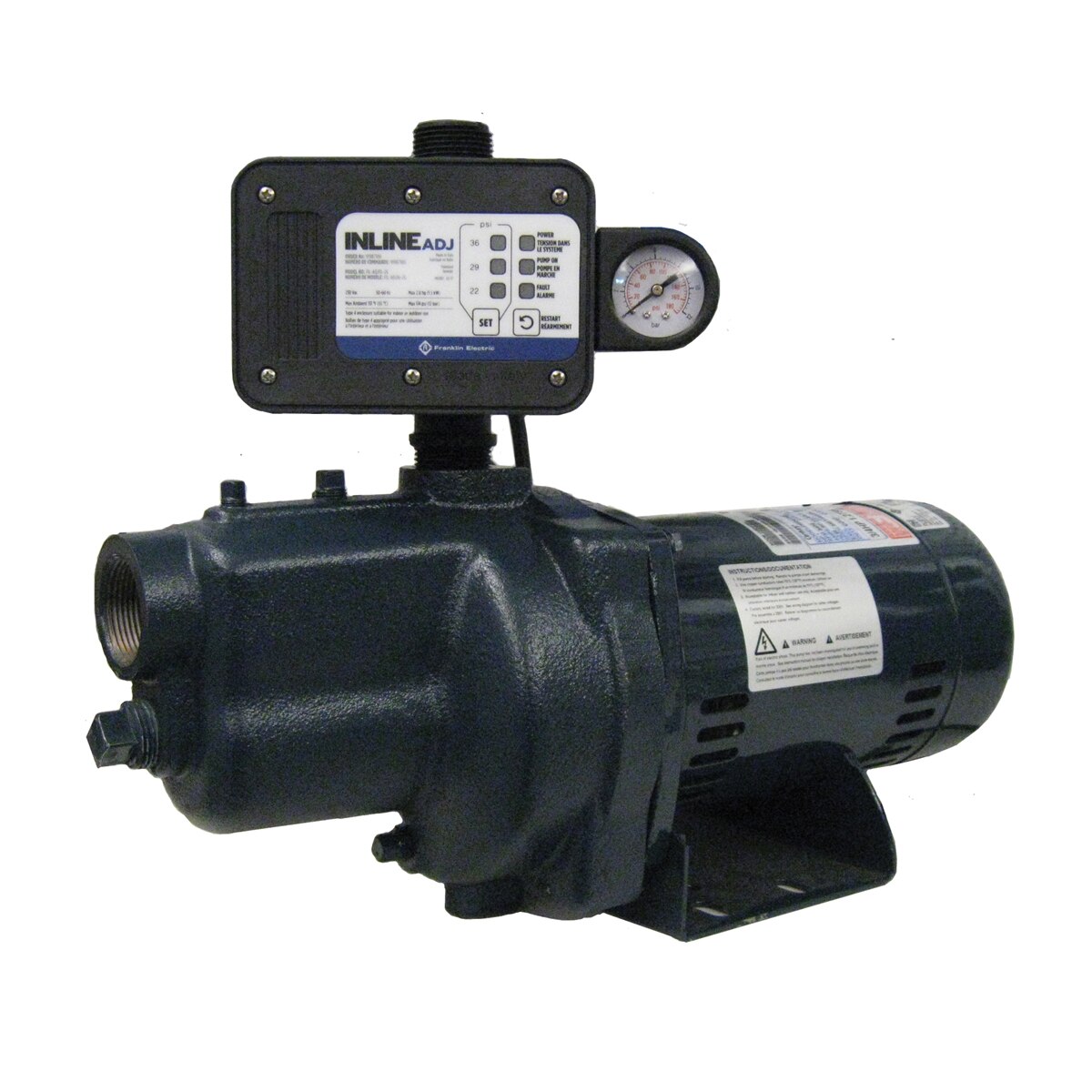

Use with a pressurized water supply or suction lift installation for municipal and well supply sources. The Inline Control SWC and SWP are flow activated smart pump start controls, designed for use in conjunction with a pump where starting and stopping the system based on water usage is desired.


  • With flow of 0.25 gpm or greater the pump is activated to ensure continuous operation during water demand cycles.
  • When flow is less than 0.25 gpm, the pump starts at a minimum pressure of 22 psi.
  • If the pump starts due to low system pressure, with no additional demand, the Inline SWC and SWP will only run the system to rebuild pressure.
  • Can be wired for 115V or 230V with no internal settings or wiring changes required Includes a convenient built-in check valve.
  • Protects pump from conditions of dry run, overcurrent, and pumping against a closed discharge (dead-head) by powering off the system when water flow stops.
  • If the pump remains idle for 24 consecutive hours, the device will carry out an autorun feature to keep the system free of debris and clogs.
  • The system will auto-rest up to 10 times in a 24 hour period if no water is detected, to protect the pump.
  • Replaces the need for an external pressure tank and differential pressure switch.
  • InlineSWC
    • Order Number: 91987103
    • Model No.: FIL-SWC16
    • Motor Size: Up to 2 HP (Up to 1.5 kW)
    • Voltage: 115/230
    • Max. Current: 16 Amps
    • Max. Temp.: 150D F
    • Thread Size: 1? MIPT
