3/4HP 10GPM 230V 3200 SERIES 3 WIRE SS PUMP & MOTOR J-CLASS 96331040
SKU: FRA-96331040

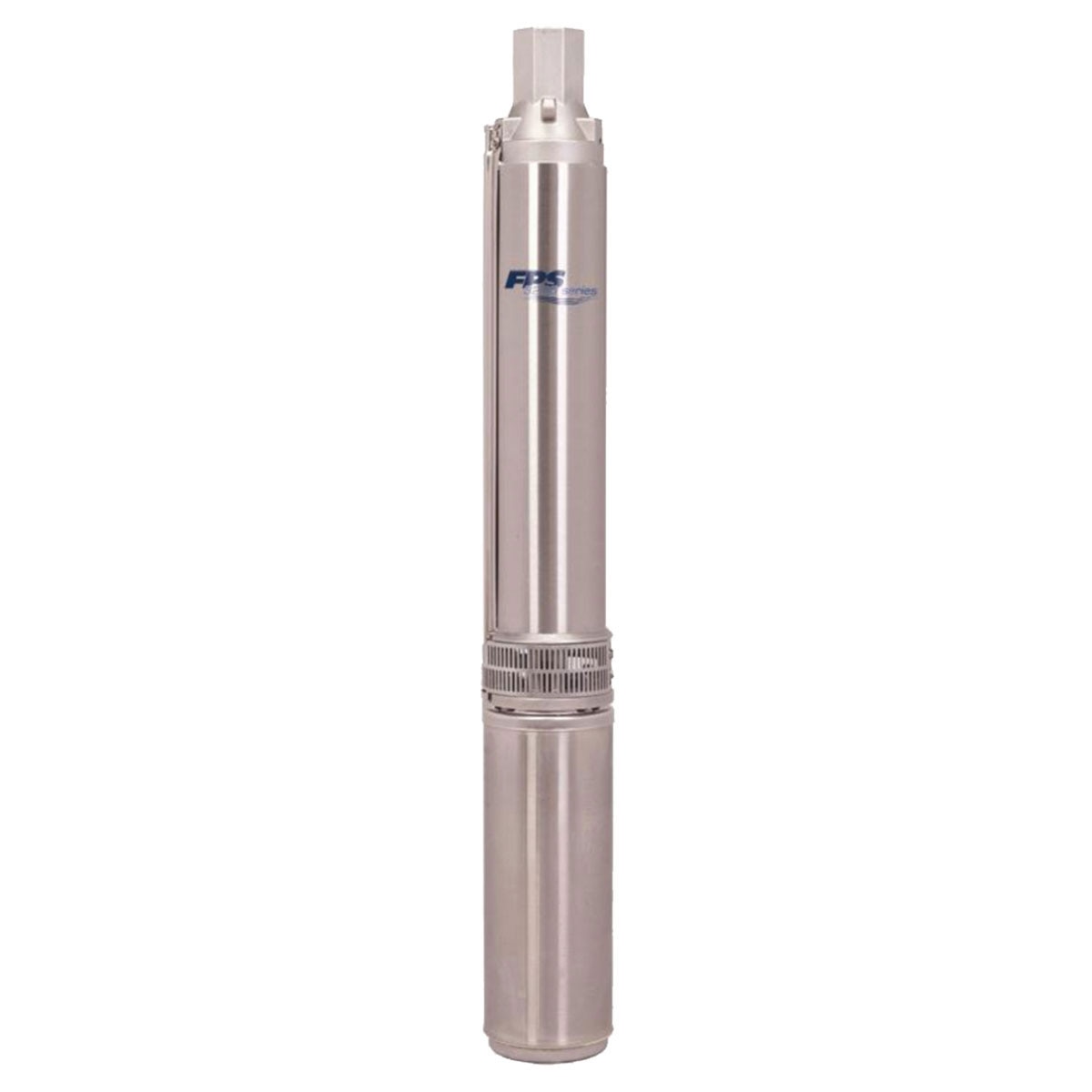

Franklin 3/4 HP, 10 GPM, 230v, 4" Submersible Well Pump (w/Motor) (9633 1040)
This 3/4 horsepower, 10 GPM, 3 wire, 230v pump has a maximum pressure of 146 PSI (338'). 1 1/4" FIPT discharge, 8 stages, 4" Model 10JS07S4-3W230.
The Standard J-Class SandHandler 4" submersible pump features the new TRI-SEAL floating stage system. This new stage system improves efficiency and protects against wear when pumping abrasives (sand). All J-Class SandHandler pumps are unconditionally guaranteed against sand locking in abrasive well conditions for one full year.
Patented impeller hub seal system seals radially and axially to prevent fluid recirculation, providing high performance in the harshest conditions.
Features:
- 300 series stainless steel hub floats with the impeller maintaining a positive seal
- Phenolic washer provides down-thrust protection
- Celcon impeller provides high efficiency performance and abrasion resistance
- Noryl diffuser and disc - proven abrasion resistant material
- Floating stage design allows impeller to float independently
- Removable, spring-loaded check valve
- Maximum water temperature: 120°F / 49°C
- Ceramic shaft sleeve and rubber discharge bearing protect shaft and eliminate sand wear
Specifications:
- Franklin Electric Item Number: 96331040
- Horsepower: 3/4
- Flow: 10 GPM @ 100' with 50 PSI discharge pressure.
- Diameter: 4"
- Discharge: 1 1/4"
- Shut Off: 338'
- Stages: 8
- Length: 24.78"
- Weight: 27 lbs
| 10 GPM Series (Based on 50 PSI DISCHARGE PRESSURE, Flow in US GPM) | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part No. | Depth to Water Level | S/O ft | ||||||||||||||||||||||
| 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 225 | 250 | 275 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | |||
| U/LP5-10 | 14 | 14 | 12 | 9 | 220' | |||||||||||||||||||
| FRA/S5-10 | 12 | 11 | 9 | 8 | 6 | 4 | 244' | |||||||||||||||||
| FRA/LP5-10 | 12 | 11 | 9 | 8 | 6 | 4 | 244' | |||||||||||||||||
| U/LP7-10 | 15 | 15 | 14 | 13.6 | 12.3 | 11.2 | 10 | 8.5 | 6.5 | 320' | ||||||||||||||
| FRA/S7-10 | 13 | 12.5 | 11 | 11 | 10 | 9 | 8 | 7 | 338' | |||||||||||||||
| FRA/LP7-10 | 13 | 12.5 | 11 | 11 | 10 | 9 | 8 | 7 | 338' | |||||||||||||||
| U/LP1-10 | 15.5 | 15 | 14 | 13.7 | 12.8 | 12.2 | 11 | 10 | 8 | 5 | 375' | |||||||||||||
| FRA/S1-10 | 13 | 13 | 12 | 11.5 | 11 | 10 | 9.5 | 8.6 | 7.5 | 6.2 | 5.2 | 444' | ||||||||||||
| FRA/LP1-10 | 13 | 13 | 12 | 11.5 | 11 | 10 | 9.5 | 8.6 | 7.5 | 6.2 | 5.2 | 444' | ||||||||||||
| U/LP15-10 | 16 | 15.5 | 15 | 15 | 14.5 | 14 | 13.5 | 13 | 12 | 11 | 9 | 5.5 | 560' | |||||||||||
| FRA/LP15-10 | 14 | 13 | 12.5 | 12.4 | 12 | 11.5 | 11 | 10.6 | 10 | 9.4 | 8 | 6.8 | 4.5 | 615' | ||||||||||
| FRA/LP2-10 | 14 | 14 | 13.6 | 13.4 | 13 | 12.7 | 12 | 11.7 | 11.2 | 10.3 | 9.2 | 8.2 | 6.7 | 5 | 2.8 | 770' | ||||||||
| FRA/LP3-10 | 13 | 12.8 | 12.3 | 11 | 10.8 | 10 | 9 | 8 | 7 | 1034' | ||||||||||||||
