INLINE ADJ SERIES 115V MAX 16 AMP OR 3/4HP 1"MNPT

SKU: **FRA-91987105
(0) No Reviews yet
$199.00

In Stock

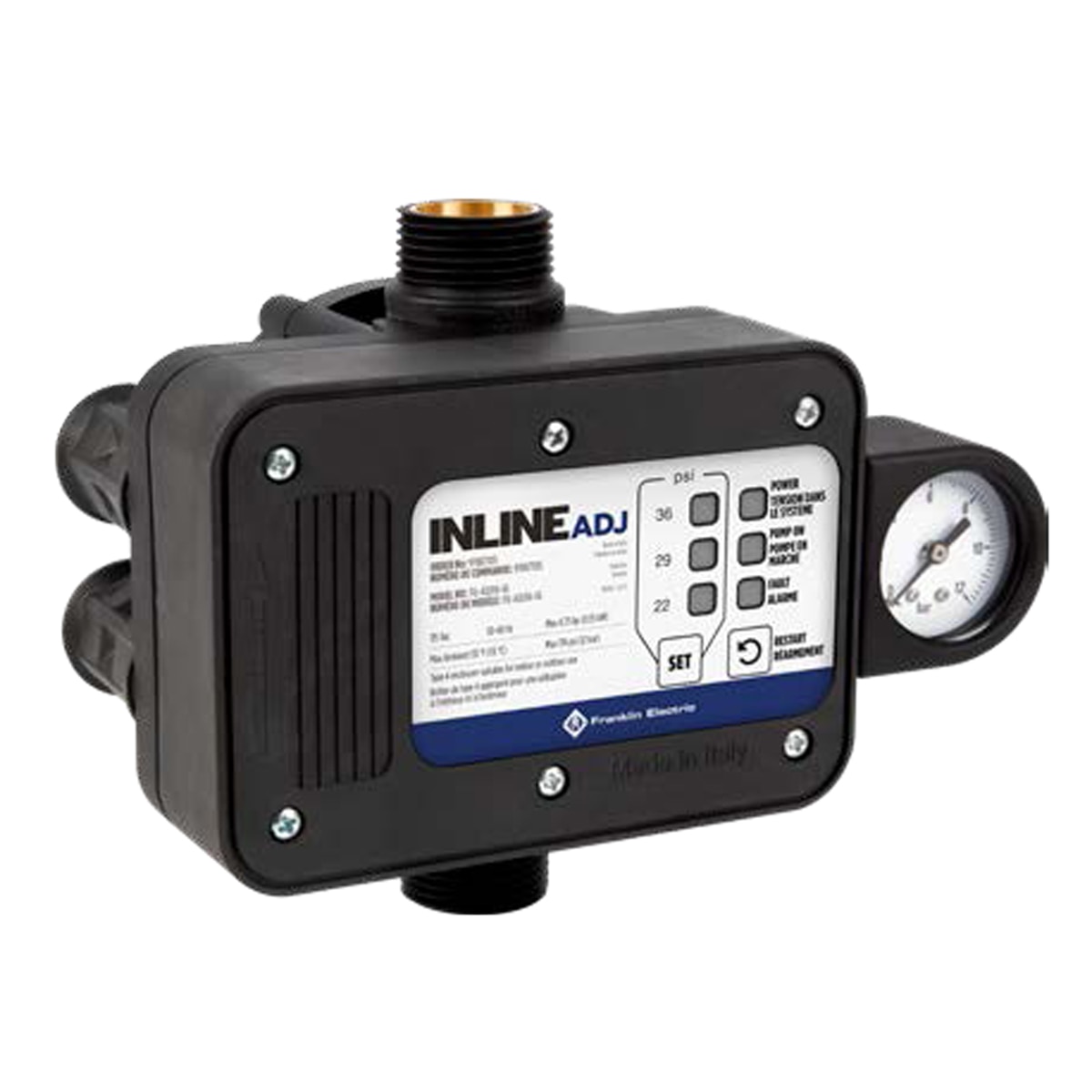

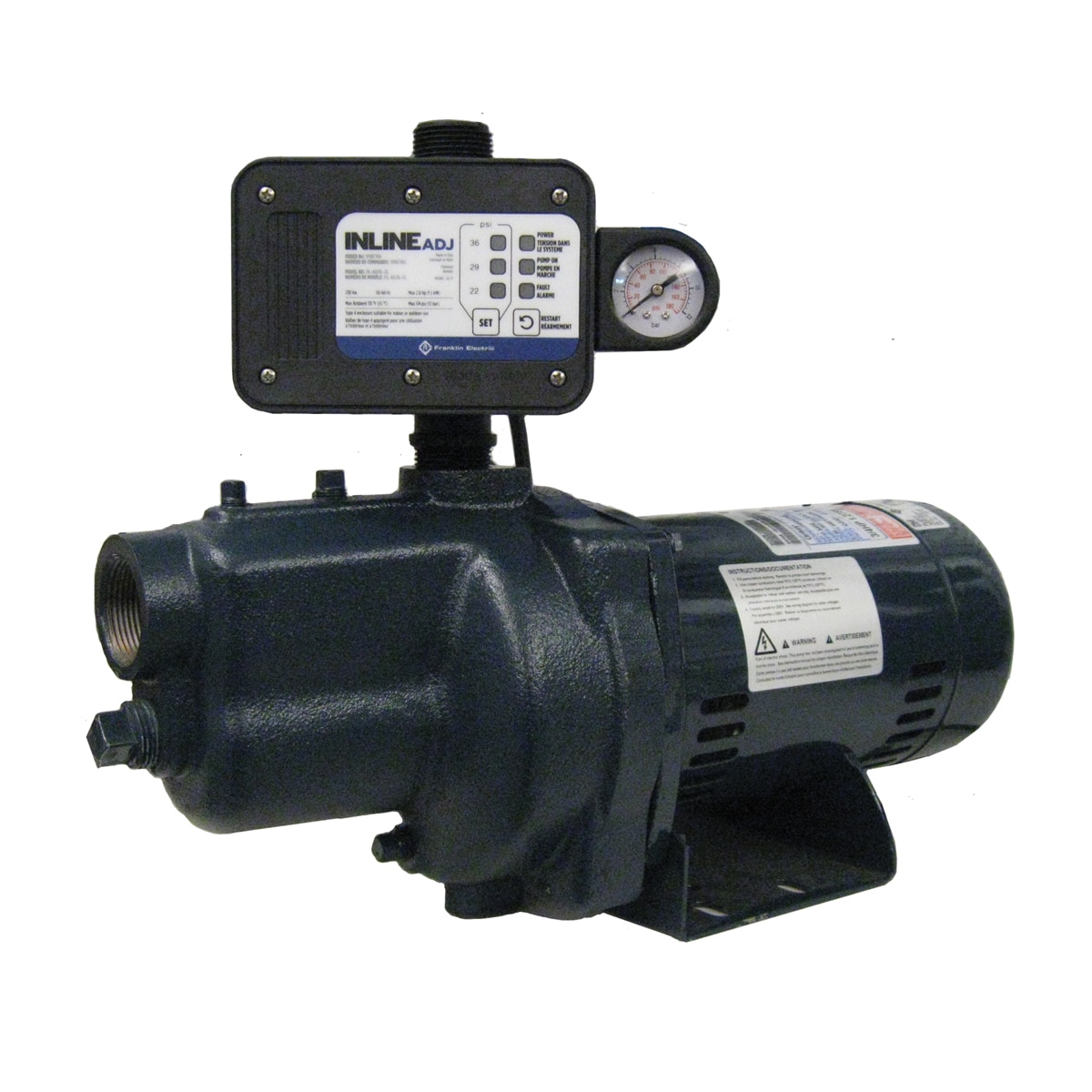

Franklin 3/4HP Max, 115v, 16 amp Max, Inline ADJ Jet Pump Control (1"MNPT)


Use with a pressurized water supply or suction lift installation for municipal and well supply sources. The Inline Control ADJ is a smart flow activated pump start control, designed for use in conjunction with a pump where starting and stopping the system based on water usage is desired. With water flow being the primary system start command, the unit provides a backup low pressure cut-in point where the pump will start to re-pressurize the system. The Inline ADJ allows this low pressure cut to be adjusted to 22, 29, or 36 PSI to ensure the system will still reach the desired shut-off pressure.


  • With flow of 0.25 gpm or greater the pump is activated to ensure continuous operation during water demand cycles.
  • When flow is less than 025 gpm, the user may select between three adjustable cut-in points for a minimum system pressure of 22, 29, or 36 psi.
  • If the pump starts due to low system pressure, with no additional demand, the Inline ADJ will only run the system to rebuild pressure.
  • Separate models for 115V or 230V with no internal settings or wiring changes required Includes a convenient built-in check valve.
  • Protects pump from conditions of dry run, overcurrent, and pumping against a closed discharge (dead-head) by powering off the system when water flow stops.
  • If the pump remains idle for 24 consecutive hours, the device will carry out an autorun feature to keep the system free of debris and clogs.
  • The system will auto-rest up to 10 times in a 24 hour period if no water is detected, to protect the pump.
  • Replaces the need for an external pressure tank and differential pressure switch.
  • InlineADJ 115V
    • Order Number: 91987105
    • Model No.: FIL-SWC16-1G
    • Motor Size: Up to 0.75 HP (Up to 0.55 kW)
    • Voltage: 115
    • Max. Current: 16 Amps
    • Max. Temp.: 150D F
    • Thread Size: 1? MIPT
