SUBDRIVE 30 CONNECT N3R FRANKLIN

SKU: FRA-5870205403C
(0) No Reviews yet
$3,590.00

On Back Order

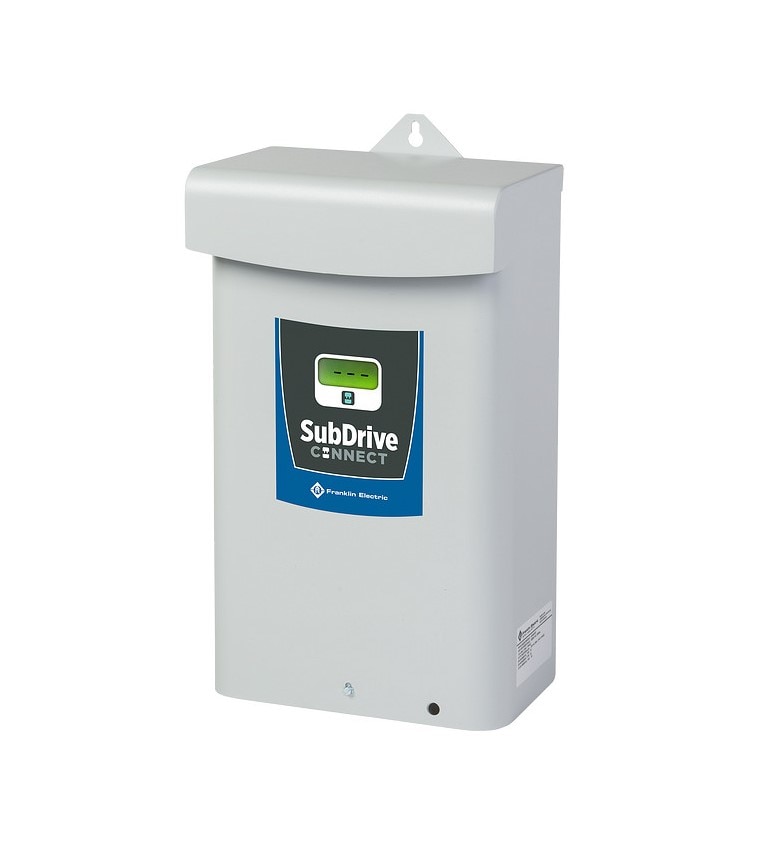

Franklin SD30 ConnectConstant Pressure Controller w/NEMA3 Enclosure


Replaces SubDrive 150 and Non-Connect SD30


  • Easy installation
  • Easy-to-read LCD display for system pressure and fault identification
  • Wi-Fi and smartphone app for advanced monitoring
  • User-defined motor frequency range
  • Broken-pipe detection
  • User-defined underload sensitivity and off time
  • Moisture Sensor input
  • Built-in Duplex Alternator
  • Run and alarm relays
  • Auxiliary control input
  • Now with Advanced Pressure Transducer replacing the Pressure Sensor
  • UL and cUL listed

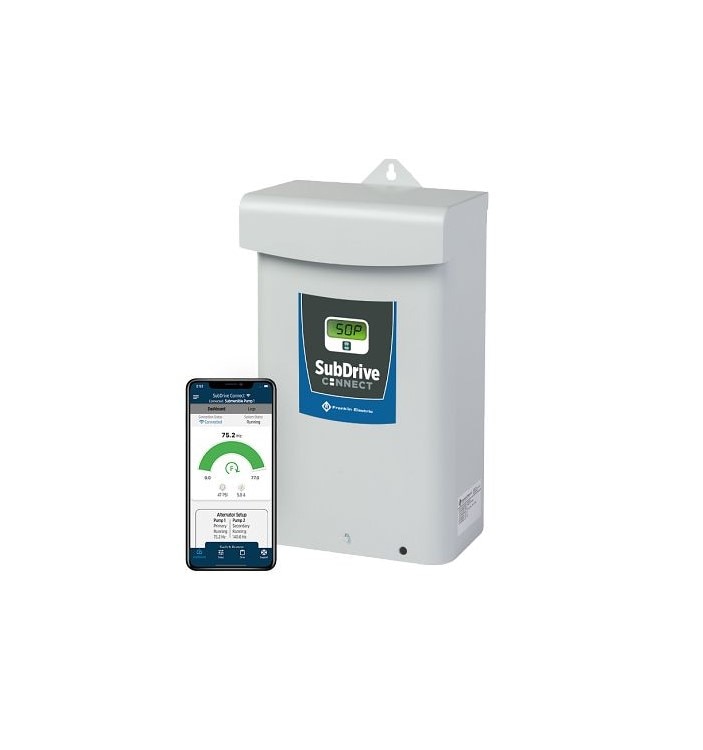

  • FE Connect Mobile App


    Wi-Fi connectivity is a feature of the drive that enables a connection to be made with a single Wi-Fi device (smartphone or tablet). The connection can be used to monitor drive characteristics, adjust advanced settings, and view or email fault history and configuration changes. The mobile app can be downloaded from the Apple App Store or Google Play depending on the device being used.


    Mobile APP Enhanced Features:


  • Real-time System Monitoring (PSI, Hz, Amps, Volts)
  • Advanced Pressure Transducer Settings
  • Drawdown/Cut-in Pressure
  • Built-in Duplex Alternator
  • Real-time Clock for Date and Time Stamps
  • Improved Fault Log Download Speed

  • Controller Enhanced Features:


  • Analog Pressure Transducer Input
  • System Pressure Shown on Drive Display
  • Moisture (Wet Floor) Sensor Input
  • Traditional SubDrive Pressure Sensor Supported
  • Auxiliary Control Input
  • Run and Alarm Contacts (NO/NC)
  • Item #3 Wire, 230 Volt Franklin Motor
    FRA/5870205003MonoDrive (Old - MD)
    Single Phase:1/2, 3/4 & 1 HP
    FRA/5870205203CMonoDriveXT
    Single Phase:1/2, 3/4, 1, 1 1/2 & 2 HP
    FRA/5870205103SD15 (Old - SD75)
    Single Phase:1/2, 3/4, 1 HP
    Three Phase: 1 & 1 1/2 HP
    FRA/5870205303SD20 (Old - SD100)
    Single Phase: 1/2, 3/4, 1, 1 1/2 & 2 HP
    Three Phase:1, 1 1/2 & 2 HP,
    FRA/5870205403SD30 (Old - SD150)
    Single Phase:1/2, 3/4, 1, 1 1/2 & 2 HP
    Three Phase:1, 1 1/2, 2 & 3 HP
    FRA/5870205503CSD50 (Old - SD300)
    Single Phase:1/2, 3/4, 1, 1 1/2, 2 & 3 HP
    Three Phase:1, 1 1/2, 2, 3 & 5 HP
    All above MonoDrive and Subdrive have Nema 3R Enclosures.
