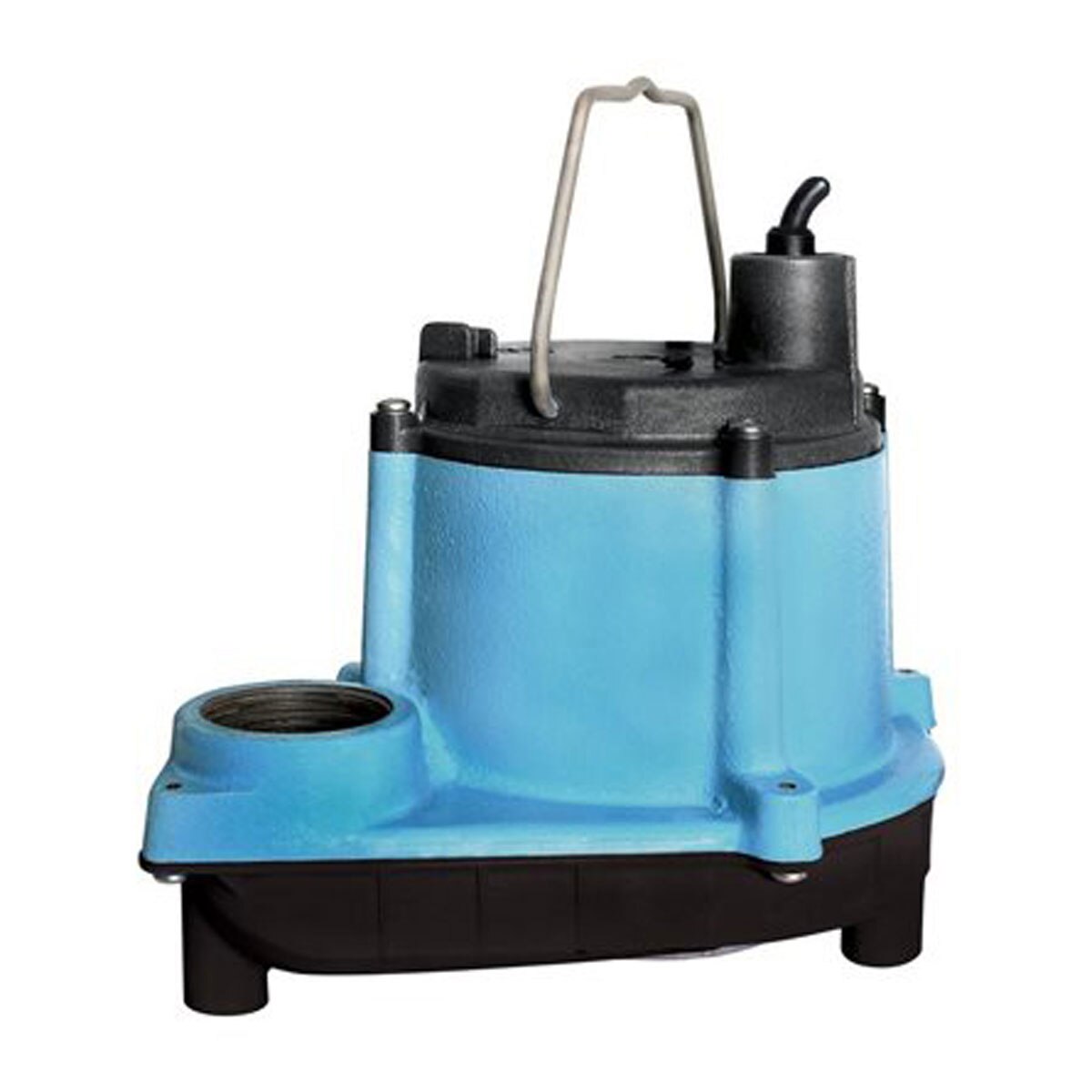

Little Giant 6 CIM 1/3 HP Manual Effluent Pump (10' Cord)
SKU: *LG-506271
Little Giant 6 CIM 1/3 HP Manual Effluent Pump (10' Cord) (506271)
The Little Giant 6-CIM-R is a submersible oil filled utility pump typically used for commercial or home use where liquid must be transferred or recirculated. This pump does not come with a pressure/float switch. Typical applications include commercial, industrial, and home uses where liquid must be transferred or recirculated.
This 1/3 horsepower pump has a maximum flow of 2700 GPH and a maximum head of 18' (7 PSI). 1 1/2” FIPT discharge, 10’ power cord, 115v.
- 1/3 horsepower shaded pole motor with overload protection
- Designed for continuous duty
- Epoxy coated cast iron housing
- 1 1/2” FIPT discharge
- 1 1/4” Adapter included
- Carbon/ceramic shaft seal
- Upper and lower sintered sleeve bearings
- Built in pressure switch for automatic operation
- Horsepower: 1/3
- Flow: 2700 GPH @ 5' Head
- Shut Off: 18'
- Power Cord: 10'
- Voltage: 115v
- Hertz: 60
- Amps 9
- Watts: 720
- Discharge: 1 1/2"
- Weight: 18.5lbs
- Height: 6"
- Width: 8.5"
- Length: 9.5"
| Item # | Flow in US GPM @ Total Head in Feet | Shut-off Head | ||||
|---|---|---|---|---|---|---|
| 1' | 5' | 10' | 15' | 20' | ||
| LG/505486 | 20 | 19 | 16 | 13 | 8 | 26.0' |
| LG/505025 | 20 | 19 | 16 | 13 | 8 | 26.0' |
| LG/506158 | 45 | 29 | 12 | 18.0' | ||
| LG/506125 | 45 | 29 | 12 | 18.0' | ||
| LG/506271 | 45 | 29 | 12 | 18.0' | ||
| LG/506055 | 45 | 29 | 12 | 18.0' | ||
