Little Giant WS100HM-12-20 PUMP 1HP * 230v
SKU: LG-620222

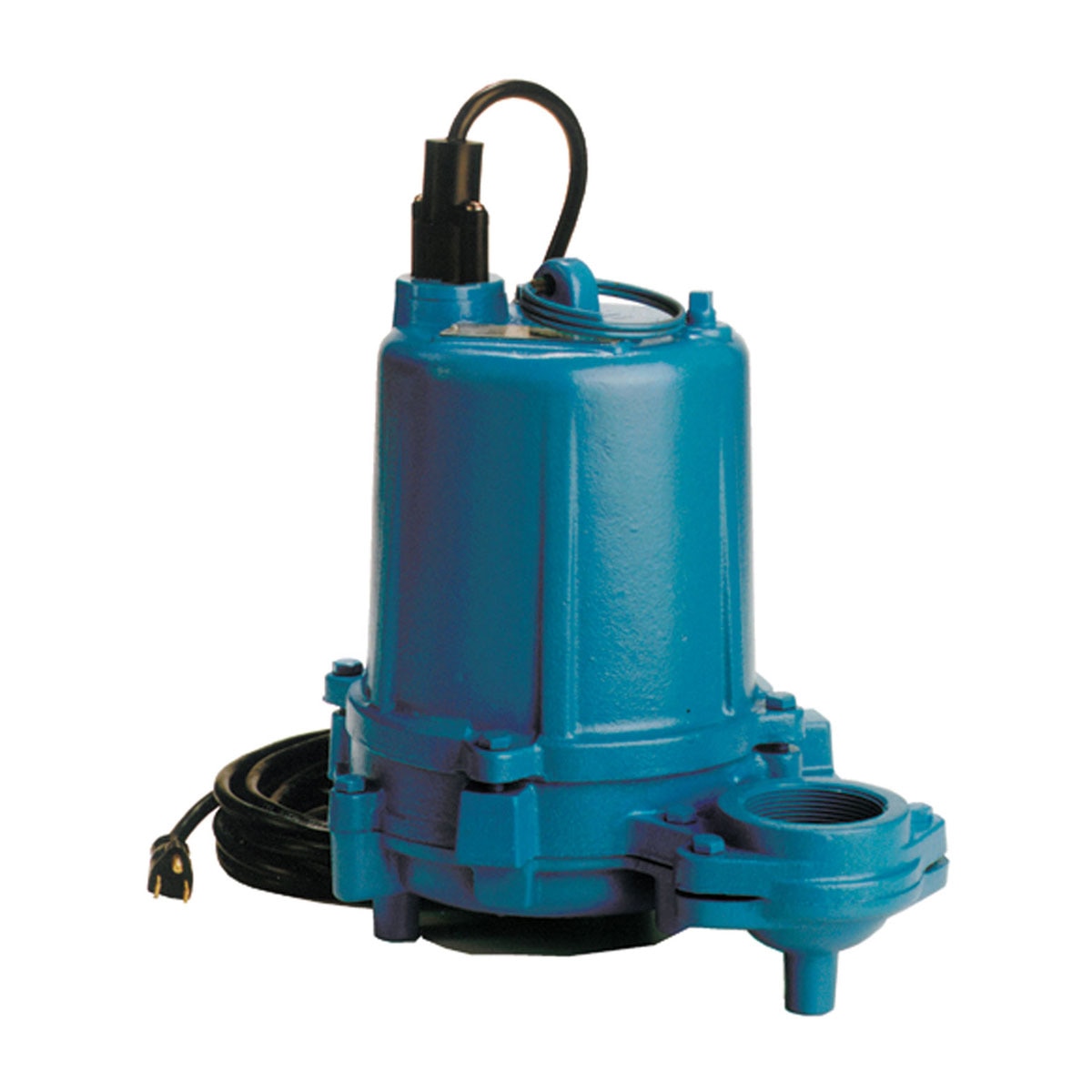

Little Giant WS100H 1 HP 230v Manual High Head Effluent Pump (20' Cord)
The WS Series submersible effluent pump from Little Giant is specifically engineered to handle the tough demanding tasks for wastewater and effluent waste transfer with high efficiency and long term dependability.
Ideal for use in residential, commercial, industrial, and agricultural applications with light to medium transfer demands such as dewatering, effluent waste, wastewater, and handling where such materials must be moved upward from a collection area to sewer lines, septic lines, or drainage areas.
This 1 horsepower pump has a maximum flow of 168 GPM and a maximum head of 90' (38 PSI).
- 2" FIPT discharge, 20' power cord, 208-230v, 1 phase
- 1 horsepower motor with overload protection
- Designed for hi-torque with automatic reset
- Cast iron motor and pump housing
- Stainless steel heat treated shaft
- Upper and lower ball bearings
- Mechanical carbon/ceramic shaft seal
- Handles 3/4" solids
- UL/CSA listed
- Horsepower: 1
- Flow: 168 GPM @ 5' Head
- Shut Off: 90'
- Power Cord: 20'
- Voltage: 208v-230v
- Phase: 1
- Hertz: 60
- Amps 13.6
- Discharge: 2"
- Weight: 57 lbs
- Height: 13.75"
- Width: 9.38"
- Length: 12.25"
| Flow in US GPM @ Total Head in Feet | Shut-off Head | Full Load Amps | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 20' | 30' | 40' | 50' | 60' | 70' | 80' | 115v | 230v | ||
| LG/620218 | 97 | 81 | 63 | 40 | - | - | - | 57' | 15 | 7.5 |
| LG/620220 | 97 | 81 | 63 | 40 | - | - | - | 57' | 15 | 7.5 |
| LG/620222 | 140 | 128 | 119 | 104 | 84 | 60 | 35 | 90' | - | 12.2 |
| LG/620207 | 140 | 128 | 119 | 104 | 84 | 60 | 35 | 90' | - | 12.2 |
