Pump Pressure Switch 30-50 PSI (Maximum 2 HP, 65 PSI)

SKU: PA-PSLOP
(0) No Reviews yet
$20.42

In Stock

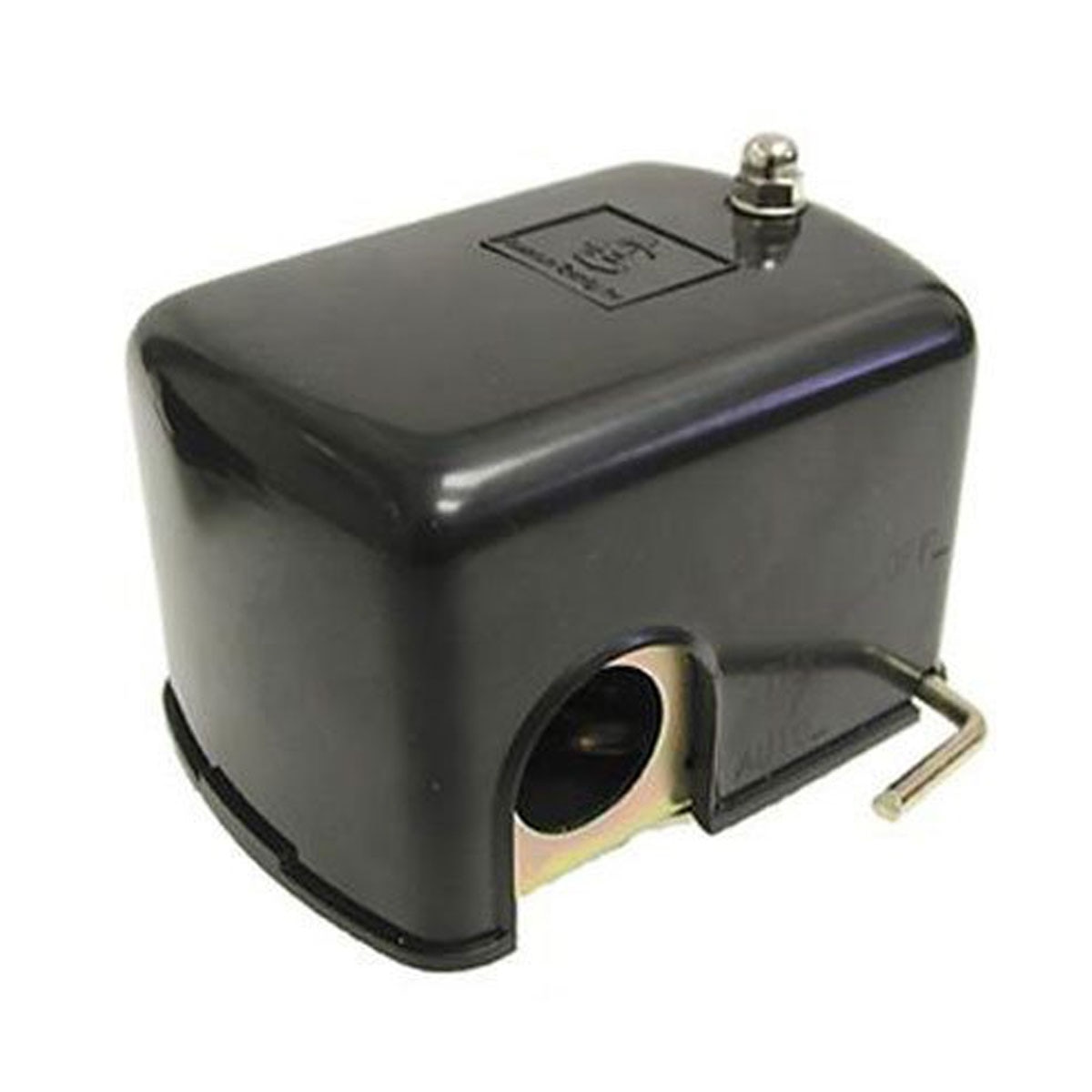

Pump Pressure Switch (w/low psi cut out) 30-50 PSI (Max 2 HP, 65 PSI)


This standard duty low level cut off water pump switch is designed for the control of electrically driven water pumps of all types. This switch is designed to close the contacts (allowing power to the pump) at 20 PSI and open the contacts (stopping power to the pump) at 40 PSI.


This switch comes with a lever that must be used to close the contacts and allow power to the pump on the initial start up. If the pressure in the system drops because of a leak in the line or no water, the switch will automatically shut the pump off and will not come on until manually started.

  • Connection: 1/4" FIPT
  • Pressure Setting: On: 30 PSI Off: 50 PSI
  • Cut-In Pressure Range: 5 to 45 PSI
  • Cut-Out Pressure Range: 20 to 65 PSI
  • Differential Pressure Range: 15 to 30 PSI
  • Maximum Pressure: 220
  • HP Max at 115V: 1.5 HP
  • HP Max at 230V: 2 HP
  • Ambient Temperature: -22°F to 158°F (-30°C to 70°C)
  • Media Temperature: -22°F to 257°F (-30°C to 125°C)
  • Enclosure: Type 1 Indoor use
  • Approval: UL/CSA
