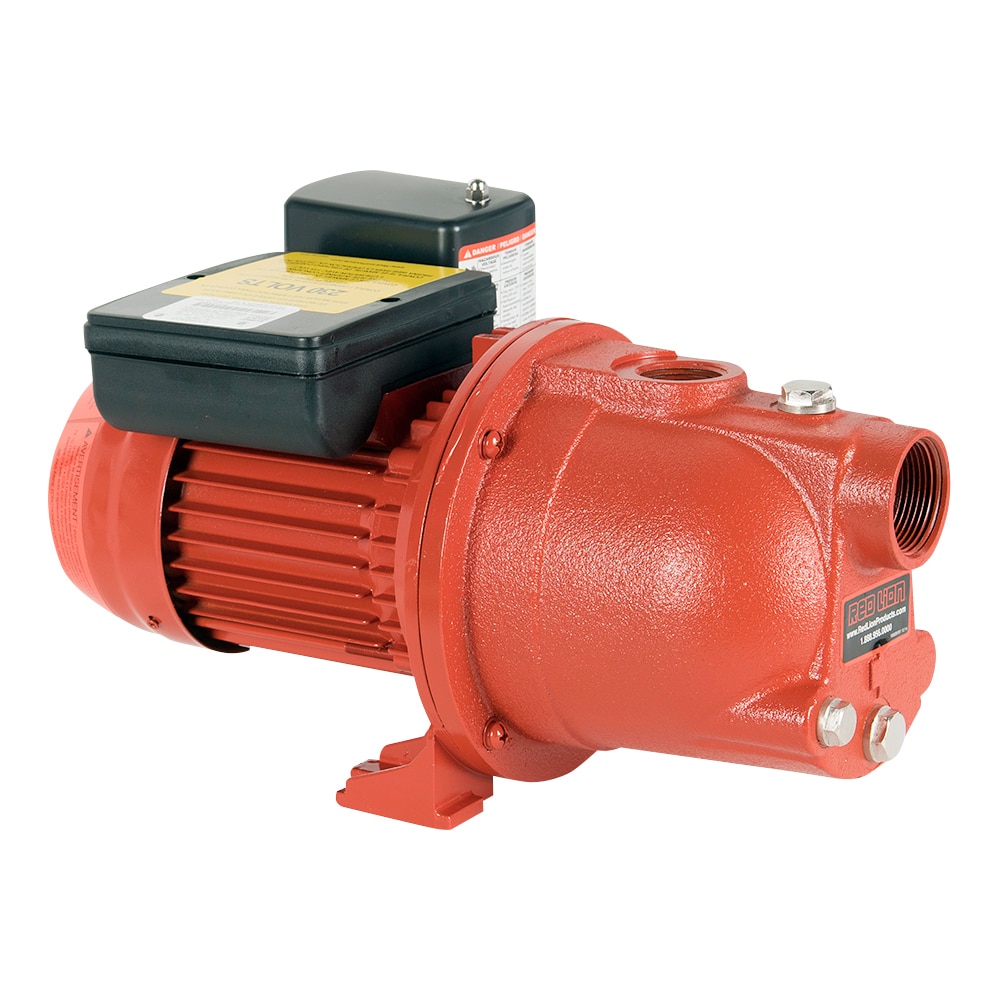

Red Lion 1/2 HP Cast Iron Shallow Well Jet Pump
SKU: RL-97080502
Red Lion 1/2 HP Cast Iron Shallow Well Jet Pump
Ideal for the supply of fresh water to rural homes, farms, and cabins that have suction lifts down to 25'.
Features & Benefits
- Shallow well jet pump Ideal for use in shallow wells less than 25' deep
- Heavy-duty cast iron construction For years of service and reliability
- Includes factory pre-set 30/50 pressure switch Produces up to 50 psi with automatic shut-off
- 115/230 Volt heavy-duty motor TEFC design with simple connection to existing power source
| AMPS | INTAKE | DISCHARGE | PRESSURE GAUGE PORT | SUCTION LIFT | DISCHARGE PRESSURE (PSI) | MAX PRESSURE | MAX HEAD | ||||
| 20 | 30 | 40 | 50 | 60 | |||||||
| GALLONS PER MINUTE | |||||||||||
| 8.4A @ 115V 4.2A @ 230V | 1-1/4”FNPT | 1" FNPT | 1/8" NPT | 5' | 13.6 | 12.6 | 7.3 | 3.4 | 1 | 64 | 148' |
| 15' | 9.7 | 9.5 | 5.5 | 2.8 | .03 | 60 | 139' | ||||
| 25' | 4.7 | 5 | 4.1 | 1.7 | - | 57 | 133' | ||||
