SJE Pump Up 115v Float Switch, 20' Cord, No Plug

SKU: SJE-20PMUWOP
(0) No Reviews yet
$105.27

In Stock (Note that the item’s inventory availability is over all three branches, combined. Phone your local branch for immediate availability)

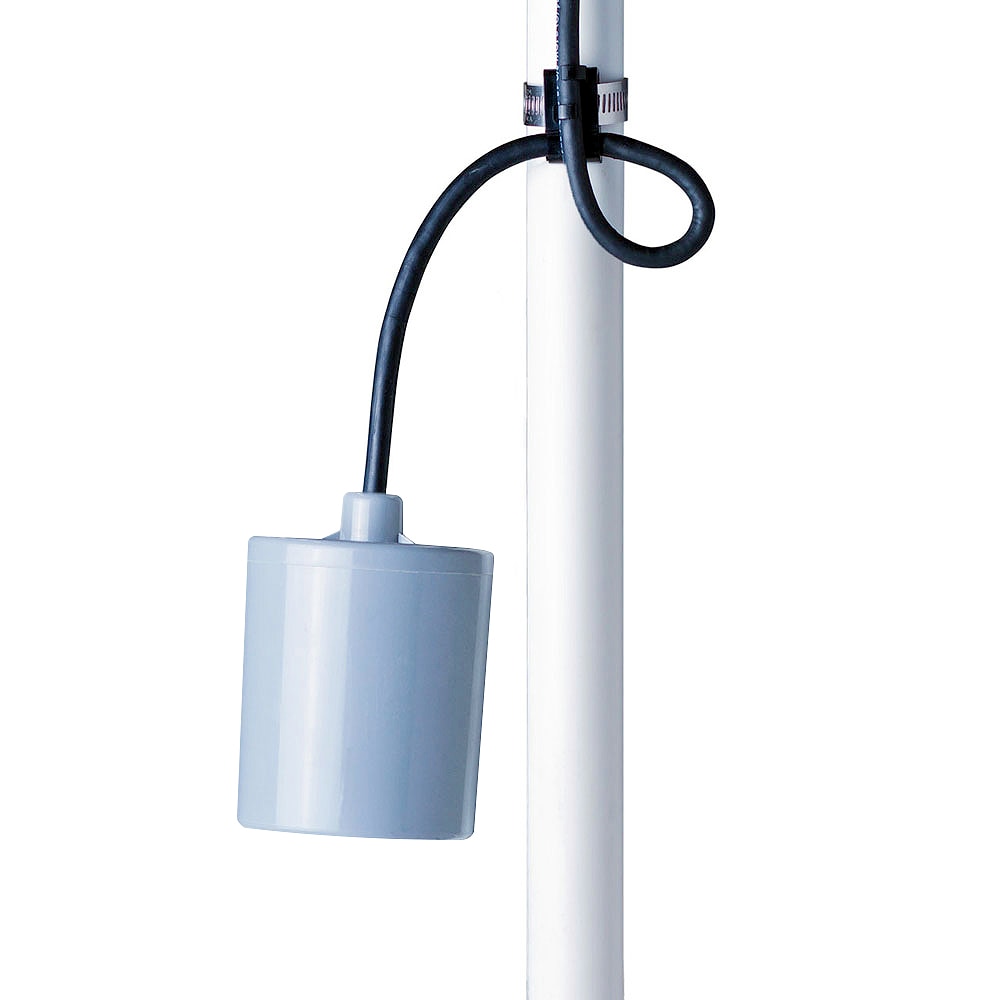

SJE Pump Up 115v Float Switch, 20' Cord, No Plug


Mechanically-activated, wide-angle switch designed for direct control of pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC.


This switch provides automatic control of pumps in:
  • Potable water
  • Water
  • Sewage applications


The SJE PumpMaster® pump switch is not sensitive to rotation or turbulence allowing it to be used in both calm and turbulent applications.
Features:


  • Passed NSF Standard 61 protocol by an approved Water Quality Association laboratory.
  • Heavy-duty contacts.
  • Controls pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC.
  • Adjustable pumping range of 7 to 36 inches (18 to 91 cm).
  • UL Recognized for use in water and sewage.
  • CSA Certified.


Specifications:


  • Cable: flexible 16 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE).
  • Float: 3.05 inch diameter x 3.56 inch long (7.75 x 9.04 cm) high impact, corrosion resistant, PVC housing for use in sewage and water up to 140°F (60°C).


120 VAC 50/60Hz Single Phase:


  • Maximum Pump Running Current: 13 amps
  • Maximum Pump Starting Current: 85 amps
  • Recommended Pump HP: 1/2 HP or less


230 VAC 50/60Hz Single Phase:


  • Max. Pump Running Current: 13 amps
  • Max. Pump Starting Current: 85 amps
  • Recommended Pump HP: 1 HP or less


Note: This switch must be used with pumps that provide integral thermal overload protection.
