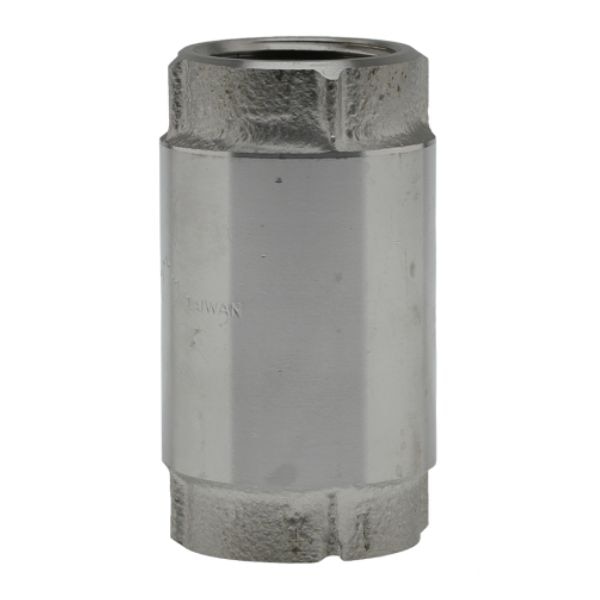

Stainless Steel 1" FIPT Spring Check Valve

SKU: VA-SSCV1
(0) No Reviews yet
$40.70

In Stock

Stainless Steel 1" FIPT Spring Check Valve


Stainless steel check valves ensure that fluid flows in one direction only. They have a higher corrosion resistance.


Specifications:
  • Size 1"
  • Valve Body Standard
  • Seal Material Viton
  • Connection Type FPT
  • Poppet Material 304 Stainless Steel
  • Primary Material 304 Stainless Steel
  • Temperature Range Up to 180°F (82°C)
  • Maximum Pressure Rating 200 PSI
  • Threads conform to ANSI/ASME B1.20.1
  • Max Pressure Rating: 200 PSI
  • 200 PSI WOG Non-Shock - WOG pressure rating based on ambient temperature
  • Max Temperature Rating: 180 F (82 C)
  • Cast 304 stainless steel body and poppet
  • Viton o-ring seal
  • Thread Sealants: Teflon Tape or Paste?


    Teflon tape is a quick and clean way to seal threads in most applications. When applying Teflon tape, care must be taken to apply the tape correctly or leaking may still occur. You should wrap the thread 2-3 times around the threads in a counter-clockwise direction so that the tape doesn't bunch up when it is screwed into the pipe. Do not over tighten, as this may cause the tape to become thin or break in spots, while under tightening may allow water through.


    For professional, long-term or industrial applications, Teflon paste, although messy and more difficult to apply, will provide a more reliable seal that won't leak if the plastic pipe distorts over time. Teflon paste should be applied to both the male and female threads.
