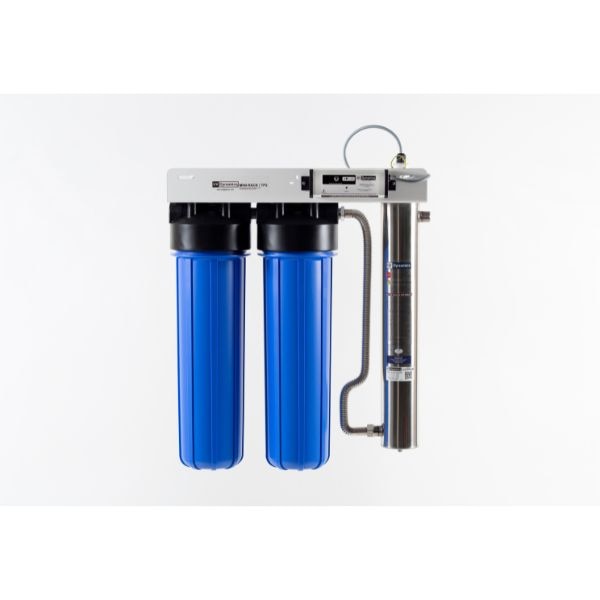

UV Dynamics 13 GPM MR400ETP2-220 w/ 2 x 20" Big Blue Filter Housings
SKU: UVD-MR400ETP2220
UV Dynamics 13 GPM MR400ETP2-220 w/ 2 x 20" Big Blue Filter Housings
UV Dynamics Mini-Rack Systems combine up to three Big Blue style filter housings and a UV disinfection system into one simple, clean looking, and integrated product line. Manufactured from rugged 10 gauge HR commercial grade steel and finished in a tough powder coat finish, the system will stay looking good as new for many years.
The Mini-Rack system uses a special variation of our standard disinfection chamber and is equipped with a bottom mounted 1/4" drain plug to facilitate winterization in seasonal applications.
UV Dynamics Mini-Rack systems are quick to install, easy to service and provide lasting value.
Recommended:
- UVD/P400467 - Surge Protector. A Surge Protector helps protect your UV power supply from frequent power outages, surges, brown out conditions or electrical storm activity. Recommended for use with all UV Dynamics installations.
- VA/D12 - 12 GPM Flow Control. Flow controls are used to maintain a defined flow rate regardless of pressure variations of the supply line.
An Eco Fee has been applied to this product. For more info, visit the Light Recycle info page.
The UV Dynamics General Purpose UV Water Sanitizer & UV Water Purifiers Features Include:
Water Purification from 10 to 13 gallons per minute [GPM] = 600 to 780 gallons per hour [GPH] Potable & high purity water point of use applications Passivated and polished 304 Stainless Steel reactor chambers manufactured from A249 pressure rated tube Advanced UV Detection System designed to minimize nuisance alarms Nominal 10 to 13 GPM flow rates at 30mJ dose 3/4" porting Audio / visual lamp timer included on UV system Stainless Steel interconnect plumbing UV bulb life of approximately 9,000 hours (approx. 375 days) Annual UV lamp replacement reminder feature Domed quartz sleeve to simply servicing No tools required for regular servicing Easy-service lamp connector
Includes:
400E (13 GPM) standard series UV 2 - 20" big blue filters (cartridge not included) Mini rack - manufactured from rugged 10 gauge HR commercial grade steel and is finished in a tough powder coat finish Connection 3/4" FIPT x 3/4" MIPT Comes fully assembled.
Includes:
UV Dynamics MR400ETP2-220 Parts
| Diag. No. | Item No. | Description |
|---|---|---|
| LIQ-BB520 | Spun Polypropylene Sediment Cartridge 20" x 4 1/2" x 5 Micron | |
| LIQ-CBBB20 | Carbon Block Big Blue Style Cartridge 20" x 4 1/2" x 10 Micron | |
| UVD-RL400128 | UV Dynamics UV Lamp (UVD 400, 400E) | |
| UVD-QS400129 | UV Dynamics Quartz Sleeve (UVD 400, 400E) | |
| UVD-P400255 | UV Dynamics Ballast (400E) | |
| UVD-P400202 | UV Dynamics O-Ring Set A (180, 240, 320, 320E, 400, 400E, 8.40C) | |
| UVD-P400111 | UV Dynamics Lamp Spring (All Units) | |
| Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times. | ||
