UV Dynamics 8 GPM Mini Rack with Single 10" BB Filter Housing

SKU: UVD-MR245ETP1100
(0) No Reviews yet
$791.70

In Stock

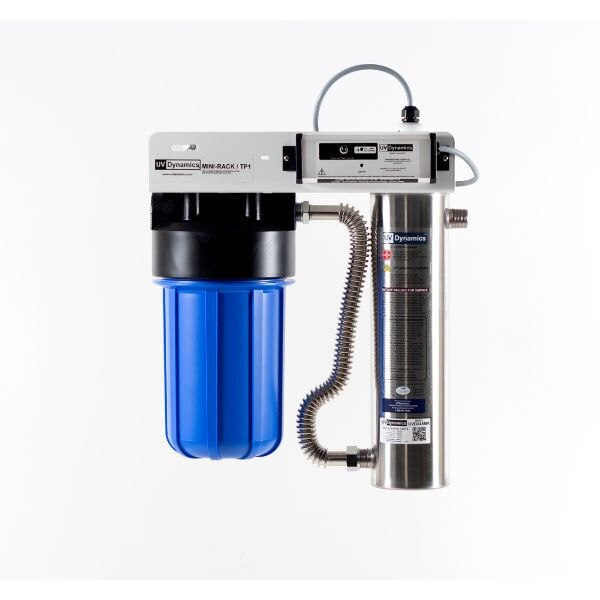

UV Dynamics 8 GPM Mini Rack with Single 10" Big Blue Filter Housing

UV Dynamics Mini-Rack Systems combine up to three Big Blue style filter housings and a UV disinfection system into one simple, clean looking, and integrated product line. Manufactured from rugged 10 gauge HR commercial grade steel and finished in a tough powder coat finish, the system will stay looking good as new for many years.

The Mini-Rack system uses a special variation of our standard disinfection chamber and is equipped with a bottom mounted 1/4" drain plug to facilitate winterization in seasonal applications.

UV Dynamics Mini-Rack systems are quick to install, are easy to service and provide lasting value.

Recommended:

  • Surge Protector. A Surge Protector helps protect your UV power supply from frequent power outages, surges, brown out conditions or electrical storm activity. Recommended for use with all UV Dynamics installations. UV dynamics voids warranty when installed without a surge protector.
  • VA-D8 - 8 GPM Flow Control. Flow controls are used to maintain a defined flow rate regardless of pressure variations of the supply line.


An Eco Fee has been applied to this product. For more info, visit the Light Recycle info page.

Features –

  • Flow rate of 8gpm (23L/min) delivers UV dose of 30mj/cm2
  • Flow rate of 6gpm (17L/min) delivers UV dose of 40mj/cm2
  • Reversible mounting bracket
  • Connections – 3/4” MNPT fittings
  • Stainless steel interconnect plumbing
  • Advanced UV Detection System designed to minimize nuisance alarms
  • Microprocessor controlled UV power source with audible and visible lamp failure alarms
  • Audio/visual lamp timer included on UV system
  • UV bulb life of approximately 9,000 hours (approx. 375 days)
  • Domed quartz sleeve to simplify servicing
  • No Tools required for regular servicing
  • Easy-service lamp connector

Additional Spec -

  • 245 (8 GPM) standard series UV
  • 1 - 10" big blue filter housing (cartridge not included)
  • Mini rack - manufactured from rugged 10-gauge HR commercial grade steel and is finished in a tough power coat finish
  • Connection 3/4" FIPT x 3/4" MIPT
  • Comes fully assembled
  • UV Dynamics number - MR245E-TP1/100, 400478

Guidelines -

  • A Minimum 5-micron pre-filter required.
  • Indoor use only - Select a mounting location for UV power source to protect it from condensation from the disinfection chamber and system piping.
  • Clean the quartz sleeve regularly
  • Install a Surge Protector as UV dynamics voids warranty when installed without a surge protector

Water must meet the following minimum requirements for trouble free operation -

  • Turbidity: < 1 NTU
  • Suspended Solids: < 10mg/L
  • Color: None
  • Total Iron: < 0.3 mg/L
  • Manganese: < 0.05 mg/L
  • Hardness: < 7 gpg
  • UVT%: > 80%

Certified by IAPMO R&T against -

  • NSF/ANSI 61 (materials safety only)
  • NSF/ANSI 372 (lead free compliance)
  • CSA-B483.1

UV Dynamics MR245TP1-100 Parts

Diag. No.Item No.Description

UVD-RL400434
UV Dynamics UV Lamp (UVD 180, 245)

UVD-QS400435
UV Dynamics Quartz Sleeve (UVD 180, 245)

UVD-P400235
UV Dynamics Ballast (UVD 180, 245, 320E) MF-SLE120

UVD-P400202
UV Dynamics O-Ring Set A (180, 240, 320, 320E, 400, 400E, 8.40C)

UVD-P400111
UV Dynamics Lamp Spring (All Units)

UVD-P400103
UV Dynamics Glandnut (for Standard UVD Units)

UVD-FHBB10
UV Dynamics Filter Housing 10" x 4 1/2" BB with 3/4" FIPT

UVD-P400465
UV Dynamics O-Ring for Big Blue filter housing (Pack of 2)
Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times.
