Well Seal 6" x 1-1/4" x 1" Cast Iron
SKU: PA-WS601210
Well Seal 6" x 1-1/4" x 1" Cast Iron

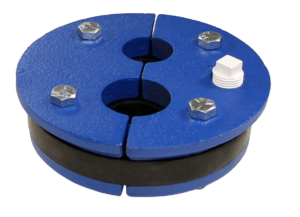

This double hole cast iron well seal rests on top of a 6" well and allows an 1 1/4" and a 1" drop pipe and a 1/2" vent to pass through the seal. Four bolts compress the rubber gasket sealing the well, drop pipe, gasket and vent.
Specifications
- For Jet Pump Applications
- Vent Size - ½"
- Design - Double Hole
- Drop Pipe Size - 1-1/4" x 1"
- Well Casing I.D. - 6"
- Primary Material - Cast Iron
- Product Model - Cast Iron Well Seals
Dimensions
- Width - 6.50 in
- Height - 2.30 in
- Length - 6.55 in
- Weight - 6.54 lb
Certifications
- No Lead
