SubDrive Utility UT3P 3-Wire 230V 1/2HP to 2 HP (1 or 3 Phase)
SKU: FRA-5870202303

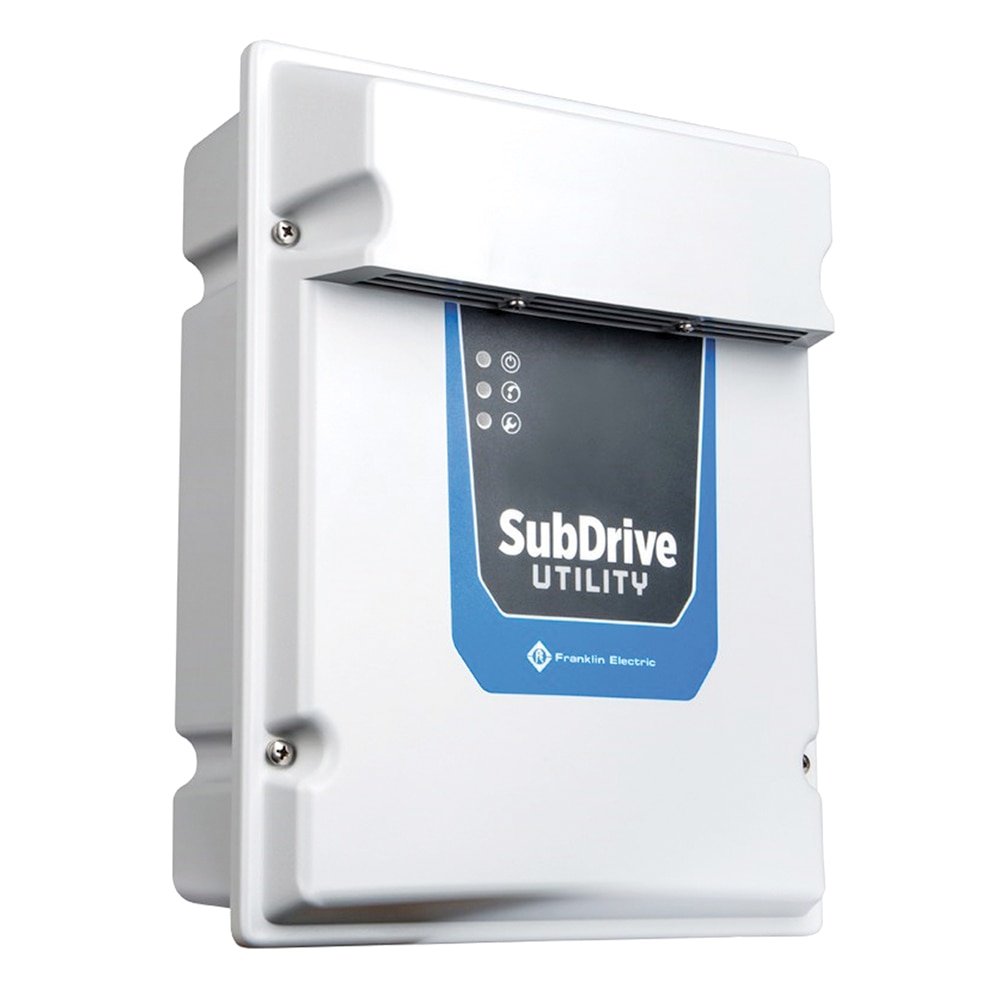

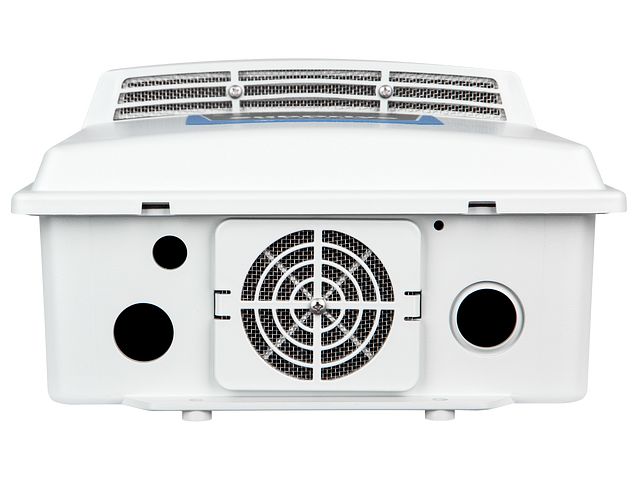

Franklin SubDrive Utility UT3P
The Franklin Electric SubDrive Utility UT3P is a variable frequency drive (VFD) designed to control and protect 3-wire, single-phase 230V motors, and 3-phase 230V motors, enhancing pump performance for residential and light commercial water system applications. When used with Franklin Electric motors ranging from 1/2 to 2 HP, the UT3P drives a pump - motor assembly at variable speeds to maintain constant water pressure, even as user demands (water flow) change.
The drive is designed to convert a conventional pump system to a variable speed constant pressure system by simply replacing the pressure switch and control box.
Features & Benefits
- Designed for Water Systems, Optimized for Constant Pressure: Designed specifically for water pumping applications, SubDrive Utility delivers unique features:
- Provides consistent water pressure across a system, eliminating fluctuations
- Additional built-in protections include:
- Underload (Dry-run) with customizable sensitivity
- Overload / Locked pump
- Output short circuit and open circuit
- Undervoltage
- Simple Installation, Easy-to-install drive: most applications require the simple flip of one switch, saving significant time during installation
- Versatility for Multiple Applications:
- Ideal for retrofitting or optimizing existing single-phase, two-wire or three-wire, and three-phase submersible or above ground pumping systems up to 2 horsepower
- Smaller Footprint, Smarter Use of Space:
- Compact design, that is ideal for wall-mounting, works with small pressure tanks or existing units
- Cost-effective solution that replaces the need for multiple control boxes, a pressure switch, and larger tanks; delivers a total system cost at or below standard installations with pump flows of 10 gpm and greater
- Can be used indoors or outside since the self-contained NEMA 3R-rated drive provides a degree of protection against falling rain or sleet
- Fully Supported: Comes fully supported by the industry-leading technical support professionals and field service engineers
Ratings
- Hz - 60 Hz
- Input Phase - Single-Phase
- Output Phase - Three-Phase & Single-Phase 3-Wire
- Input Power Factor - 0.52
- Input Power Max - 2500 W
- Input voltage single phase (VAC) - 230 VAC
- Minimum Motor HP (1 Phase, 3 Wire) - 0.5 @ 230 VAC
- Maximum Motor HP (1 Phase, 3 Wire) - 2 @ 230 VAC
- Minimum Output Amps (1 Phase, 3 Wire) - 2.0 @ 230VAC
- Maximum Output Amps (1 Phase 3 Wire) - 13.2 @ 230VAC
- Minimum Motor HP (3 Phase) - 0.5 @ 230 VAC
- Maximum Motor HP (3 Phase) - 2.0 @ 230 VAC
- Minimum Output Amps (3 Phase) - 2.0A @ 230 VAC
- Maximum Output Amps (3 Phase) - 8.1 @ 230VAC
- Minimum Output Frequency - 15Hz (CEN), 30Hz (SUB)
- Maximum Output Frequency - 60Hz (CEN), 60Hz (SUB)
- Maximum Output Current - 13.2 A
- Output Voltage - 230 VAC
- Output Voltage - 1 Phase, 3 Wire (VAC) - 230 VAC
- Output Voltage - 3 Phase (VAC) - 230 VAC
- Pressure Sensor Included - Yes
- Pressure Transducer Included - NO
- Enclosure Rating - Type 3R
- Minimum Operating Temperature - (-13)°F
- Maximum Operating Temperature - 122 °F
- Pressure Transducer Included - NO
- Storage Temperature - (-13)° to 144 °F (-25° to 65 °C)
- Maximum Storage Temperature - 149 °F
- Minimum Storage Temperature - (-13)°F
Materials of Construction
- Shelf Life - 1.5 year
Dimensions
- Product Weight - 19.84 lb
- Carton Length - 14.13 "
- Carton Width - 12 "
- Carton Height - 7.75 "
Other
- Drinking Water Agency Approvals - ANSI/NSF Standard 61
- Electrical Agency Approvals - cUL Listed / UL
- Warranty Standard Time - 12 Mo. from Date of Install / 24 Mo. from Date of Manufacturing
