JCY07P 3/4HP PLASTIC JET PUMP
SKU: FRA-91090007

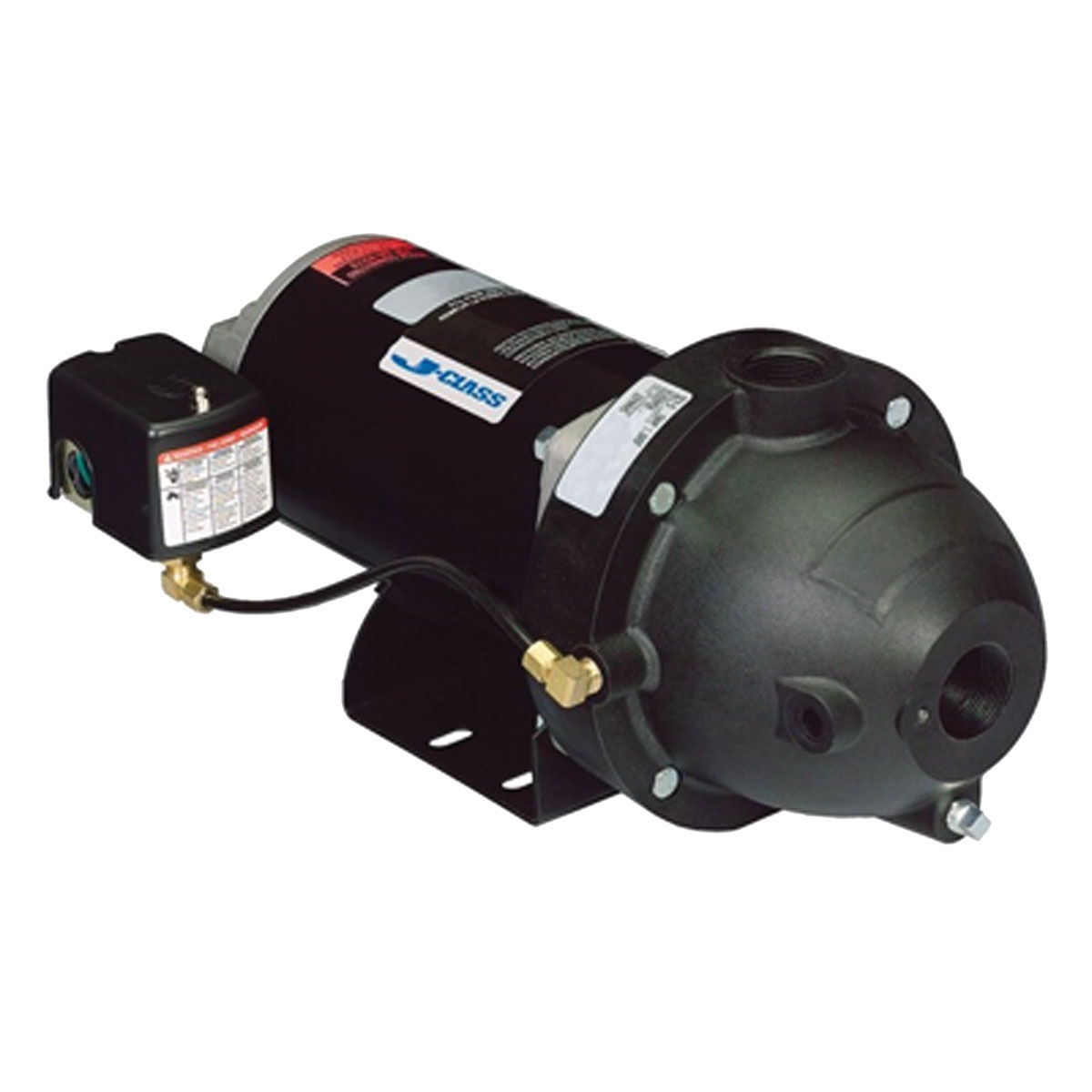

Franklin 7CY-S (3/4 HP, 115/230v) Plastic Jet Pump
The Cyclone Series Thermoplastic Jet Pumps are easily serviced and economically priced. Available in 1/2 and 3/4 HP models. These pumps are a great choice for any of the following applications: Shallow Well, Marine Use, Aqua Culture, Booster Pump, Mist Spraying, Chemical/Fertilizer Transfer Pump.
This 3/4 horsepower pump is capable of 14.4 GPM at 40 PSI with a 5' suction lift. 1 1/4" FIPT Suction, 1" FIPT Discharge, 115/230v, no power cord supplied.
- Non-corrosive thermoplastic
- Replaceable in-line nozzle/venturi design for maximum hydraulic efficiency and ease of service
- Self cleaning, anti-clogging injector screen
- Thermoplastic impeller and diffuser ensure increased hydraulic performance
- Floating stainless steel eye seal for maximum performance and efficiency
- Square-flange mounting provides easy serviceability without disturbing the plumbing
- Built-in drain plug for easy winterizing and servicing
- Mechanical shaft seal allows positive protection against leaking
- Pressure gauge sold separately
- Pressure switch is installed and set at 30/50 PSI
- Handles water temperatures up to 120°F and working pressure up to 75 PSI
- Dual Voltage: 115/230v
- 1" FIPT discharge
- 1 1/4" FIPT suction
- Repair Kit Available
Manufacturer Pump Model: 7CY-S Manufacturer Order Number: 91090007
| Model Part# | Total suction lift (ft) | DISCHARGE PRESSURE - PSI | Shut-off Pressure PSI | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | |||
| GALLONS PER MINUTE | ||||||||||
| JAC/ 91090005 | 5 | 12 | 10.7 | 9.1 | 7.2 | 4.9 | 2.8 | .09 | - | 62 |
| 10 | - | 10 | 8.4 | 6.3 | 3.9 | 1.9 | - | - | 60 | |
| 15 | - | - | 7.7 | 5.3 | 3.0 | 0.9 | - | - | 57 | |
| 20 | - | - | 6.4 | 4.3 | 2.2 | 0.2 | - | - | 55 | |
| 25 | - | - | 5.0 | 3.3 | 1.4 | - | - | - | 53 | |
| JAC/ 91090007 | 5 | - | 16 | 14.4 | 12.6 | 10.6 | 8.3 | 5.0 | 1.8 | 68 |
| 10 | - | - | 13.5 | 11.8 | 9.7 | 6.9 | 3.6 | 0.2 | 65 | |
| 15 | - | - | - | 11.0 | 8.8 | 5.4 | 2.2 | - | 63 | |
| 20 | - | - | - | 9.0 | 7.2 | 3.9 | 0.8 | - | 60 | |
| 25 | - | - | - | - | 5.6 | 2.3 | - | - | 58 | |
Franklin Electric CY SERIES 7CY Replacement Parts
| Diag. No. | Item No. | Description |
|---|---|---|
| 1 | FPS-03087300K | Plastic Case Kit |
| 2 | FPS-05392303RKIT | J-Class Impeller Kit (7CY) |
| 5 | CRA-T66BC | 5/8" Type 6 Buna/Carbon Seal |
| 7 | FPS-11152105 | J-Class Seal Plate (5CY, 7CY) |
| 12 | FPS-18045005 | J-Class Shallow Well Injector Assembly (7CY) |
| 18 | MOT-SQ07 | Square Flanged 3/4 HP Motor, Single Phase |
| 22 | PA-PS3050 | Pump Pressure Switch 30-50 PSI (Maximum 2 HP, 65 PSI) |
| Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times. | ||
