JC07CI-C 3/4HP CAST IRON JET PUMP
SKU: FRA-91060053
Franklin 7C-S (3/4 HP, 115/230v) Cast Iron Jet Pump
The C Series Cast Iron Jet Pumps are equipped with a stainless steel impeller for high performance and longevity and is available in ½ or ¾ HP. This pump can deliver up to 18 gallons per minute from shallow well applications and up to 16 gallons per minute from deep well applications.
This ¾ horsepower pump is capable of 15.5 GPM at 40 PSI with a 5’ suction lift.1¼” FIPT Suction, ¾” FIPT Discharge, 115/230v, no power cord supplied.
- Heavy-duty iron construction for long life
- Stainless steel impeller for high performance
- Thermoplastic diffuser is molded for efficiency and dependability
- Screw-in injector for easy conversion from shallow to deep well installation
- Mechanical shaft seal ensures leak proof fit and continuous lubrication
- Factory assembled as shallow well unit
- Hardware kit allows for versatility of installation and includes pressure gauge and plugs
- Deep well injector must be ordered separately
- Dual Voltage: 115/230v
- 1 1/4" FIPT suction
- 3/4" FIPT discharge
- 1" FIPT pressure line (applies to deep well installations)
Manufacturer Pump Model: 7C-S Manufacturer Order Number: 901060053
- Horsepower: ¾
- Flow: 15.5 GPM @ 40PSI, 5’ Suction Lift
- Shut Off: 55 - 61 PSI
- Voltage: 115/230v
- Phase: 1
- Hertz: 60
- Pressure Switch: On: 30 PSI Off: 50 PSI
- Suction: 1¼”
- Discharge: ¾”
- Weight: 50 lbs
- Height: 8.25”
- Width: 10.5”
- Length: 17.75”
* Dimensions will vary according to motor manufacturer.
| Model Part# | Total suction lift (ft) | DISCHARGE PRESSURE - PSI | Shut-off Pressure PSI | |||||
|---|---|---|---|---|---|---|---|---|
| 30 | 35 | 40 | 45 | 50 | 55 | |||
| GALLONS PER MINUTE | ||||||||
| JAC/ 91060020 | 5 | 10.2 | 8.9 | 6.6 | 4.8 | 3.3 | 1.8 | 61 |
| 10 | 9.3 | 7.8 | 5.8 | 4.1 | 2.7 | 1.2 | 59 | |
| 15 | 8.4 | 6.9 | 5.0 | 3.5 | 2.0 | 0.6 | 57 | |
| 20 | 7.6 | 6.0 | 4.3 | 2.8 | 1.4 | - | 55 | |
| 25 | 6.6 | 5.3 | 3.6 | 2.2 | 0.8 | - | 53 | |
| JAC/ 91060053 | 5 | 15.8 | 15.7 | 14.1 | 10.7 | 7.5 | 4.0 | 61 |
| 10 | 15.0 | 14.9 | 12.8 | 9.2 | 6.0 | 2.5 | 59 | |
| 15 | 14.0 | 13.9 | 11.3 | 7.9 | 4.5 | 1.0 | 57 | |
| 20 | 12.5 | 12.4 | 9.6 | 6.4 | 3.0 | - | 54 | |
| 25 | 10.5 | 10.4 | 8.3 | 4.9 | 1.5 | - | 52 | |

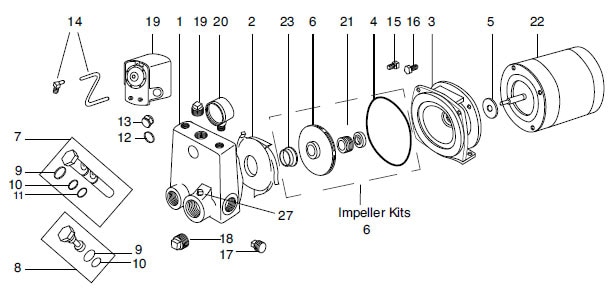

Franklin Electric C SERIES 7C Replacement Parts
| Diag. No. | Item No. | Description |
|---|---|---|
| 3 | FPS-02105302 | J-Class Seal Plate (7C) |
| 6 | FPS-05307517KIT | J-Class Impeller Kit (7C) |
| 7 | FPS-18170704 | J-Class Shallow Well Injector Assembly (7C) |
| 8 | FPS-18129007 | J-Class Bypass Plug (C Series) |
| 19 | PA-PS3050 | Pump Pressure Switch 30-50 PSI (Maximum 2 HP, 65 PSI) |
| 21 | CRA-T66BC | 5/8" Type 6 Buna/Carbon Seal |
| 22 | MOT-56J07 | Threaded Shaft 3/4 HP 56J Motor, Single Phase, 3450 RPM |
| Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times. | ||
