This Wastewater Pump Control panel is Designed to Quickly Connect to Laptop Computer for System Programming, Monitoring & Reporting

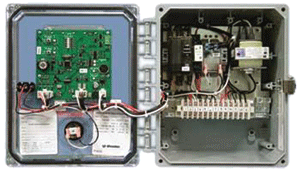

The EZ Series® In-Site® CL waste water pump control panel utilizes the floatless C-Level sensor and is available for single phase simplex and duplex; demand and timed dose applications (can be easily converted in the field).

Plug your laptop computer (software requires Windows® XP, Vista® or 7 operating system) into the Modbus Port located on the inside door to quickly download system events which have occurred, including pump run times, pump cycles, alarm conditions, HOA settings, power outages, service calls and more. Up to 4,000 system events are stored and when capacity is reached, oldest events are replaced by the newest events. The software (included with the panel) formulates system data for you, creating reports quickly and easily so system conditions can be identified and corrected. In addition, the EZ Series® In-Site® CL panel logs any changes made to the system settings, which helps protect service providers.

Control Panel Programming Screen

This screen allows the user to program pump settings, C-Level sensor settings and control panel parameters. It provides visual indication of the tank level and C-Level activation levels.

Daily Events Screen

This screen summarizes all events occurring daily, including alarms, service calls and other events. This graphical display allows user quick access to what is happening in the system. Clicking on the colored event bar opens a daily data report for each event.

Daily Flow Screen

This screen summarizes the number of gallons flowing through the system on a daily basis: pump 1 gallons (simplex), pump 2 gallons (duplex), and total gallons. This report is useful for diagnosing system trends.
