The Leaf Eater is simple, effective and easy to install.




This next generation Rainwater Harvesting filter attaches to your downspout to ensure that no leaves or other debris enters your basin. It features a stainless steel mosquito-proof screen and pivoting outlet for either rear or bottom discharge. The leaf eater improves water quality and reduces tank maintenance.








Features and Benefits

  • Compact, versatile rain head for quick and easy installation
  • Prevents debris from entering the basin
  • Outlet pivots for rear or bottom discharge
  • Includes stainless steel mosquito-proof screen
  • Minimal maintenance


Maintenance
The screen is mostly self-cleaning. If cleaning is needed, lift the screen out by taking hold of the quick release tabs and pull upwards and outwards. Hose the screen and brush off.

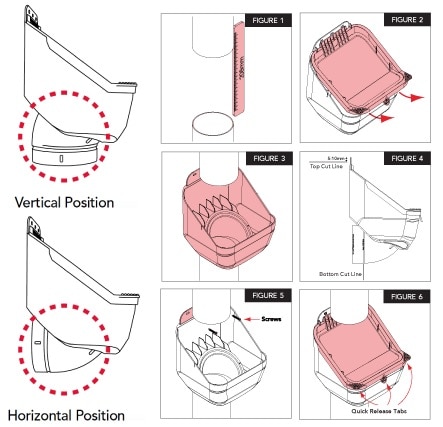

Installation Instructions

Gutter & Mid-Mount Installation

  1. Gutter: Measure 10½" from the bottom of the existing gutter pop and remove this section of downspout. Ensure the cut edge is clean and smooth. Mid-Mount: Remove 10½" of downspout where the Leaf Eater Advanced is to be situated. Ensure all cut edges are clean and smooth. (figure 1)
  2. Using the quick release tabs remove the Clean Shield screen by lifting it up and then out. (figure 2)
  3. Insert the Leaf Eater Advanced by sliding it up over the cut section and then down into position. The Leaf Eater Advanced outlet should be slid firmly onto the bottom down pipe until it can be pushed no further.
  4. Screw the Leaf Eater Advanced into position through the screw slots provided. Ensure appropriate screws and anchors (if required) are used.
  5. Insert the Clean Shield screen into the Leaf Eater Advanced. Ensure the Clean Shield screen is sitting firmly in place and check installation is secure.
Horizontal (Rear Outlet) Installation

  1. Using the quick release tabs remove the Clean Shield screen by lifting it up and then out. (Figure 2)
  2. Swivel the outlet to the horizontal position - some force may be required.
  3. Position the Leaf Eater Advanced next to existing pipework, mark and cut top and bottom cut lines as per figure 4 . Ensure the cut edge is clean and smooth.
  4. Insert the Leaf Eater Advanced by sliding the rear outlet into the horizontal pipe. The back fixing plate must sit behind the top section of downspout. (figure 3)
  5. Screw the Leaf Eater Advanced into position through the screw slots provided. Ensure appropriate screws and anchors (if required) are used. (figure 5)
  6. Insert the Clean Shield screen into the Leaf Eater Advanced. Ensure the Clean Shield screen is sitting firmly in place and check installation is secure. (figure 6)
